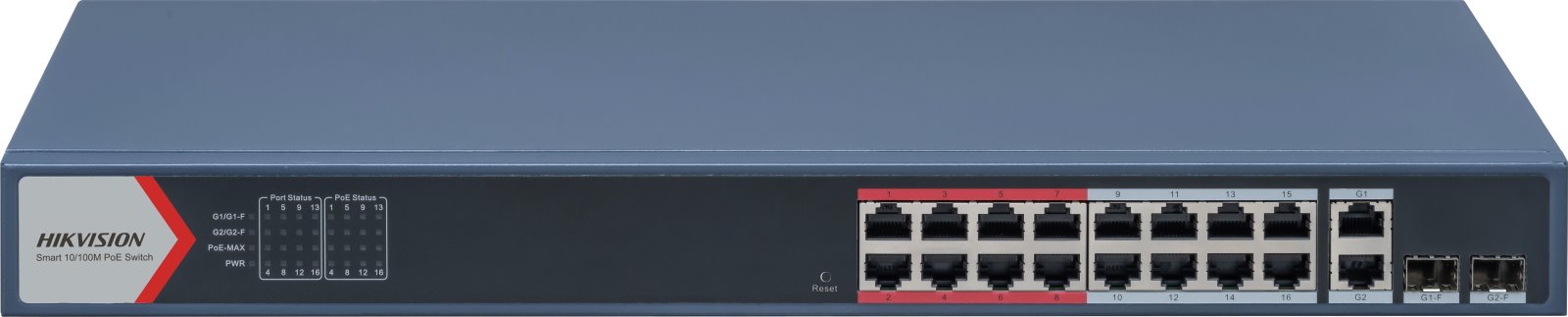

Hikvision DS-3E1318P-EI(B) Smart managed PoE switch, 16x PoE, 230W

The powerful PoE switch for extensive IP infrastructures is the ideal solution for medium and larger camera systems as well as enterprise networks, offering 16 PoE ports with a transfer rate of 100 Mbps, each supporting the 802.3af/at standards and providing up to 30 W per port. Thanks to a total PoE budget of 230 W, it can power multiple IP cameras, access points, or VoIP devices simultaneously. Network connectivity is ensured by 2 gigabit combo uplink ports (RJ-45/SFP), allowing for flexible connections to the backbone or other switches. The switch supports intelligent management via the iVMS-4200 platform and offers network topology visualization for effective monitoring and maintenance.

For more demanding deployments in the field or larger areas, a Long-Range PoE mode with a range of up to 300 meters is available, ideal for remote outdoor cameras or points without access to power. The switch is equipped with features such as PoE watchdog, loop detection (STP/RSTP), and VLAN separation options to enhance security and network stability. 6kV surge protection protects the device against voltage spikes and ensures smooth operation even in challenging environments.

Key Features

• 16 × PoE ports (10/100 Mbps)
• Total PoE power budget of 230 W
• 2 × gigabit combo uplink ports (RJ-45/SFP)
• Long-Range PoE mode with a range of up to 300 m
• 6 kV surge protection on PoE ports
