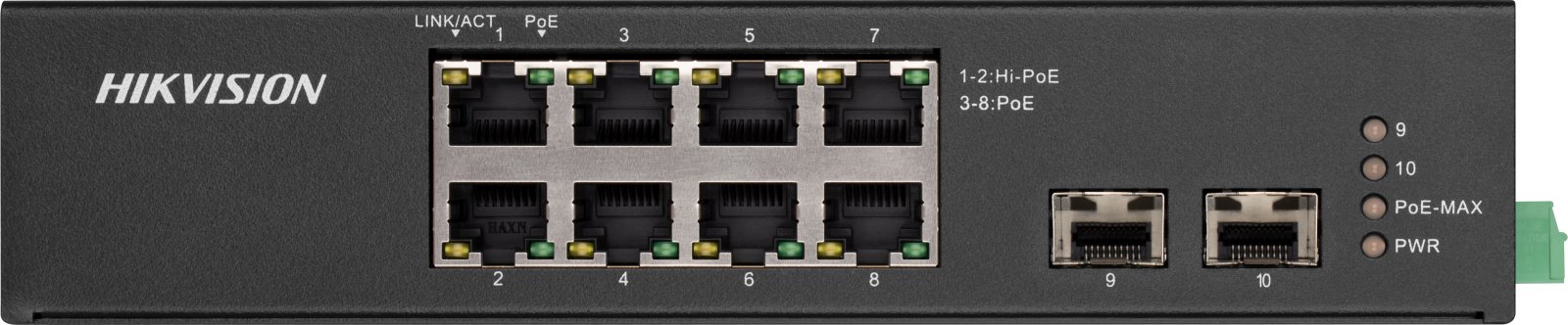

Hikvision DS-3T0510HP-E/HS Industrial PoE switch, 8x PoE, 110W

The durable PoE base for demanding industrial environments offers a robust solution designed for settings where standard network elements do not perform well. With a operating temperature range of -30 °C to +65 °C and passive cooling without a fan, it is ideal for outdoor applications, industrial zones, and technical shafts. A total of 8 PoE ports includes 6 standard ports with a power output of up to 30 W and 2 Hi-PoE ports providing up to 90 W, for example, to power rotating PTZ cameras or powerful intercoms. Total PoE budget of 110 W allows efficient powering of multiple devices without the need for additional power supplies.

Thanks to Long-Range mode, devices can be connected up to 300 m away, significantly increasing deployment flexibility in large premises. The integrated 6 kV surge protection protects the network from discharges and voltage spikes. The PoE Watchdog function automatically restarts unresponsive devices, thus reducing the need for service interventions. Port isolation prevents errors from spreading between devices and increases the security of the entire network.

Key Features

• 8 × PoE ports (6 × 30 W, 2 × Hi-PoE 90 W)
• Total PoE budget of 110 W
• Long-Range mode – transmission and power up to 300 m
• 6 kV surge protection on ports
• Switching capacity of 20 Gbps and throughput of 14.9 Mpps
