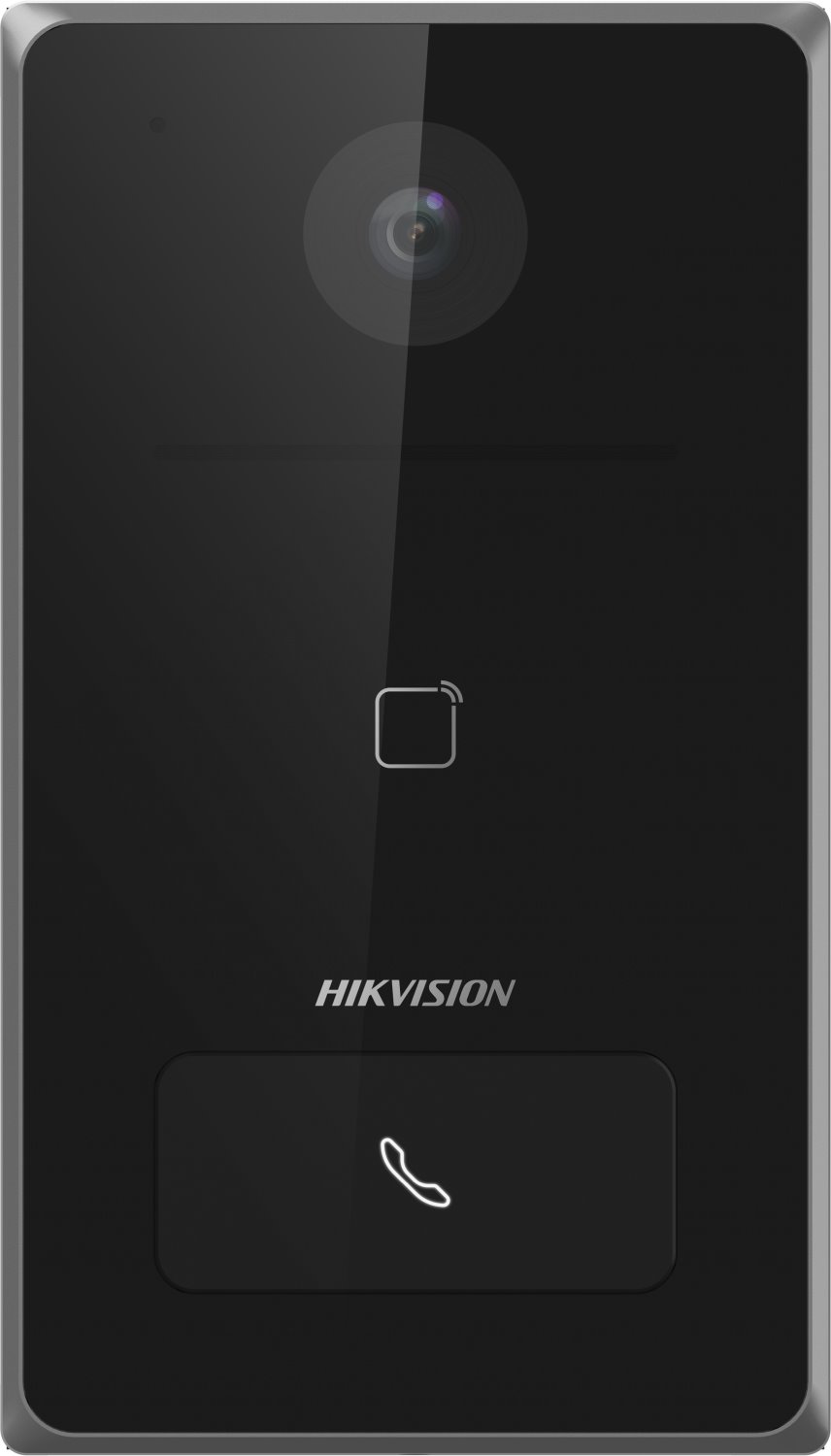

Hikvision DS-KV6133-WME1/Flush, IP door intercom with 2Mpx camera, button and WiFi, flush mounting

The elegant door station with a compact aluminum chassis represents the ideal combination of modern design, durability, and top-notch functionality. Full HD camera with a resolution of 1920 × 1080 and a field of view of 129° provides a sharp and wide image that covers the entire space in front of the entrance. The 120 dB WDR technology ensures perfect display even in challenging lighting contrasts, while the IR illumination up to 2.5 meters allows for reliable monitoring even at night. The design with a single button offers clarity and ease of use, making it suitable for family homes, apartment complexes, and smaller corporate buildings.

Smart connection and flexible control

The built-in Mifare card reader module facilitates access management for up to 2000 individuals or 10 000 registered cards, ensuring security and convenience in daily use. Connectivity via Ethernet or Wi-Fi 802.11b/g/n allows for easy integration into a network and flexible installation. Thanks to the direct call function to the Hik-Connect app, you can communicate with visitors even remotely—without the need for an internal station. Standard PoE power supply minimizes cabling requirements and simplifies installation.

Durability and quality for any environment

The design with IP65 rating guarantees high resistance to dust, moisture, and adverse weather conditions. Surface mounting and compact dimensions of 182 × 104 × 30 mm allow for elegant integration into the facade without disrupting the appearance of the building. The device supports output for an electric lock and four alarm inputs, thereby expanding the security options for the entire property. The combination of reliable technology, modern design, and easy control creates a professional solution for smart access management.

Key features

• Full HD camera 1920 × 1080 with a field of view of 129° and 120 dB WDR technology
• IR illumination up to 2.5 meters for night monitoring
• Built-in Mifare reading module for up to 2000 users or 10 000 cards
• Wi-Fi 802.11b/g/n and 10M/100M Ethernet for easy connectivity
• Direct calling to the Hik-Connect app without the need for an internal station
• PoE power supply (12 VDC/10 W) for straightforward installation
• IP65 rating and aluminum chassis for outdoor use
• Dimensions 182 × 104 × 30 mm, recessed mounting
• 1x output for electric lock (NO/NC relay), 4x alarm input
