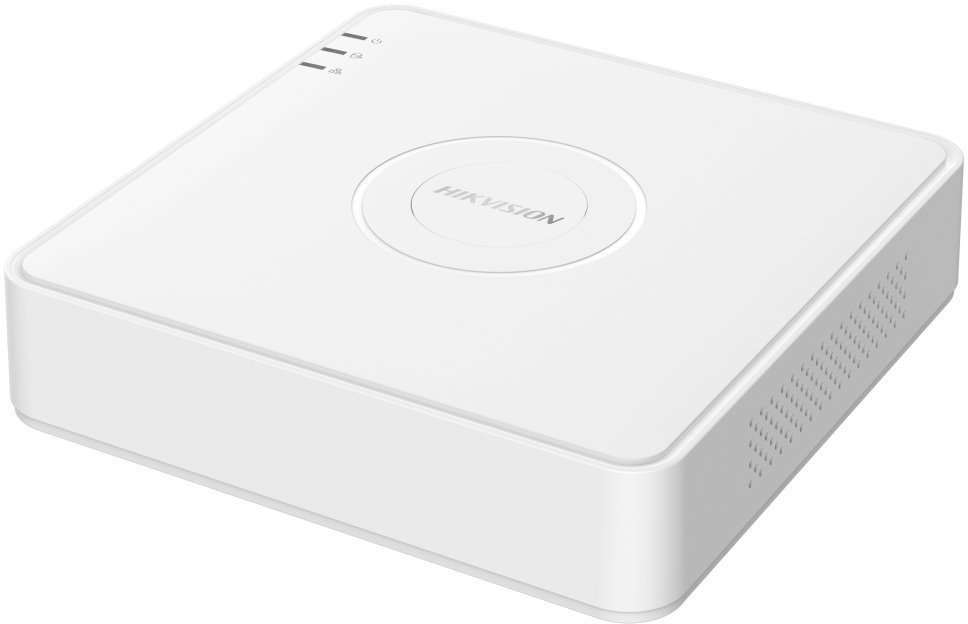

Hikvision NVR DS-7104NI-Q1/4P(D), 4 channels, 1x HDD, 4x PoE

The network video recorder (NVR) from the manufacturer Hikvision is used for recording up to 4 IP cameras in a combination of various resolutions up to 6 Mpx with data storage on 1x SATA HDD up to 6 TB per disk. The recorder features 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget of 36 W, 2x USB 2.0, 1x HDMI, 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W. For simple management of the camera system, the mobile Hik-Connect application allows for live video, camera control, and receiving notifications.

Key Features

• Support for 4 channels for recording
• Maximum input/output data rate 40 Mbps / 60 Mbps
• Recording resolution up to 6 Mpx
• Decoding capacity of 4 channels (1080p @ 30 fps)
• 1x SATA HDD with a capacity of up to 6 TB
• HDMI and VGA video output
• 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget 36 W

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 48V / 1A
• Power cable
• Mouse
