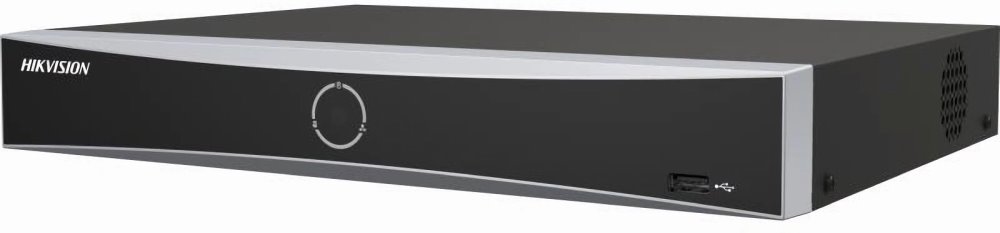

Hikvision NVR DS-7604NXI-K1/4P(D)/Alarm4+1, 4 channels, 1x HDD, 4x PoE, Alarm, AcuSense

The network video recorder (NVR) from the manufacturer Hikvision is designed for recording up to 4 IP cameras in a combination of different resolutions up to 12 MP with data storage on 1x SATA HDD up to 10 TB. The recorder features 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget of 50 W, audio input/output, alarm 4/1, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W. For simple management of the camera system, there is a mobile Hik-Connect application that allows live video, camera control, and receiving notifications.

Key Features

• Support for 4 channels for recording
• NVR video analytic functions: Face capture/Face detection (1 channel), Face picture comparison (2 channels), Motion Detection (4 channels)
• Camera video analytic functions: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA
• AcuSense - person and vehicle recognition, significantly reducing false alarms
• Maximum input/output data rate 40 Mbps / 80 Mbps
• Recording resolution up to 12 MP
• Decoding capacity of 6 channels (1080p @ 30 fps)
• 1x SATA HDD with capacity up to 10 TB
• HDMI and VGA video output - HDMI output up to 4K
• 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget 50 W
• Audio 1/1 + Alarm 4/1

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• 48V / 1.35A power adapter
• Power cable
• Mouse
