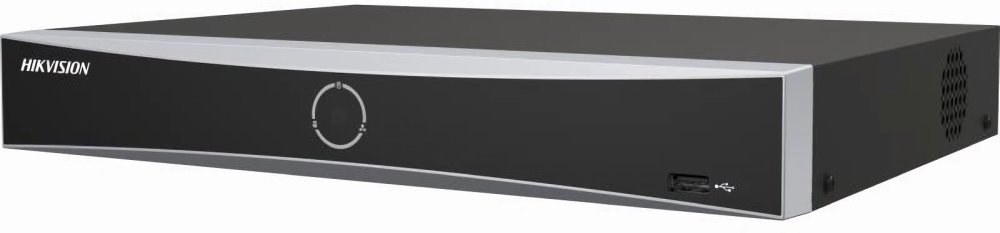

Hikvision NVR DS-7616NXI-K2/16P(D), 16 channels, 16x PoE, 2x HDD, Alarm, AcuSense

The network video recorder (NVR) from the manufacturer Hikvision serves for recording up to 16 IP cameras in a combination of various resolutions up to 12 Mpx with data storage on 2x SATA HDD up to 16 TB per disk. The recorder features 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget of 200 W, audio input/output, alarm 4/1, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD and PoE is 15 W. A mobile Hik-Connect application facilitates simple management of the camera system, allowing live video, camera control, and notification reception.

Key features

• Support for 16 channels for recording
• NVR video analytic functions: Face capture/Face detection (1 channel), Face picture comparison (4 channels), perimeter protection (2 channels), Motion Detection (16 channels)
• Video analytic functions from cameras: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA
• AcuSense - recognition of person and vehicle, significantly reducing false alarms
• Maximum input/output data rate 160 Mbps / 160 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity 12 channels (1080p @ 30 fps)
• 2x SATA HDD capacity up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget 200 W
• Audio 1/1 + Alarm 4/1

Package contents

• Device
• Patch cable
• (2) SATA cable (data and power) + screws
• Power cable
• Mouse
