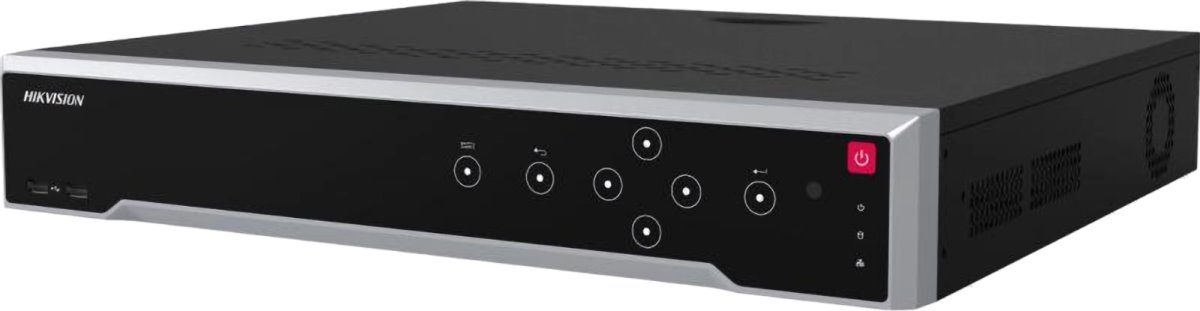

Hikvision NVR DS-7716NI-M4, 16 channels, 4x HDD, Alarm

The network video recorder (NVR) from the manufacturer Hikvision serves for recording up to 16 IP cameras in various resolutions up to 32 Mpx with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/9, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 1x HDMI (8K), 1x HDMI (4K), 1x VGA, and a power AC connector. The maximum power consumption of the recorder without HDD is 15 W. A mobile Hik-Connect app is used for easy management of the camera system, allowing live video, camera control, and receiving notifications.

Key Features

• Support for 16 channels for recording
• Video analytical functions from cameras: heat map, ANPR, VCA, people counting, line crossing, motion detection
• Maximum input/output data rate 256 Mbps / 256 Mbps
• Recording resolution up to 32 Mpx
• Decoding capacity 40 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB + 1x eSata
• 2x HDMI and VGA video output - HDMI output with 8K resolution and the second 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Contents of the Package

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Rack mounts
• Mouse
