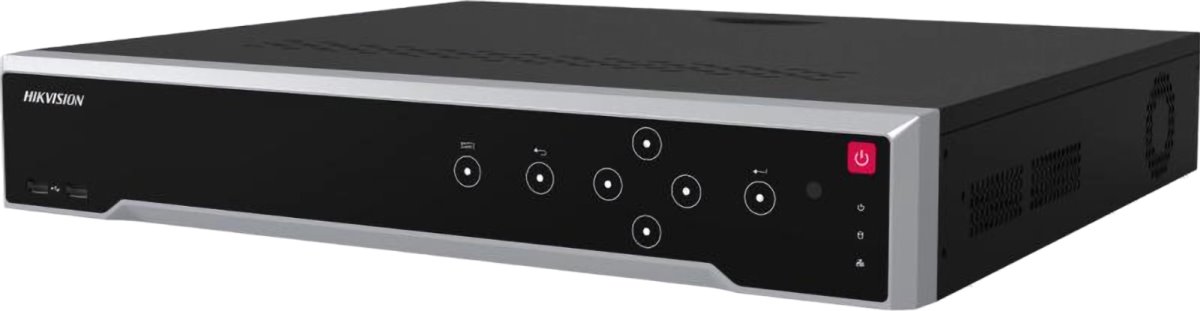

Hikvision NVR DS-7716NI-M4/16P, 16 channels, 4x HDD, Alarm, 16x PoE

The network video recorder (NVR) from the manufacturer Hikvision is designed for recording up to 16 IP cameras in a combination of different resolutions up to 32 Mpx, with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 1x 10/100/1000 Mbps + 16x 10/100 Mbps (16x 802.3af/at PoE) LAN, PoE budget of 200 W, audio input/output, alarm 16/9, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 1x HDMI (8K), 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 15 W. For easy management of the camera system, a mobile Hik-Connect application is available, allowing live video, camera control, and receiving notifications.

Key Features

• Support for 32 channels for recording
• Video analytic functions from cameras: heat map, ANPR, VCA, person counting, line crossing, motion detection
• Maximum input/output bitrate 256 Mbps / 256 Mbps
• Recording resolution up to 32 Mpx
• Decoding capacity of 40 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB + 1x eSata
• 2x HDMI and VGA video output - HDMI output with a resolution of 8K and another 4K
• 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget 200 W
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Rack mount brackets
• Mouse
