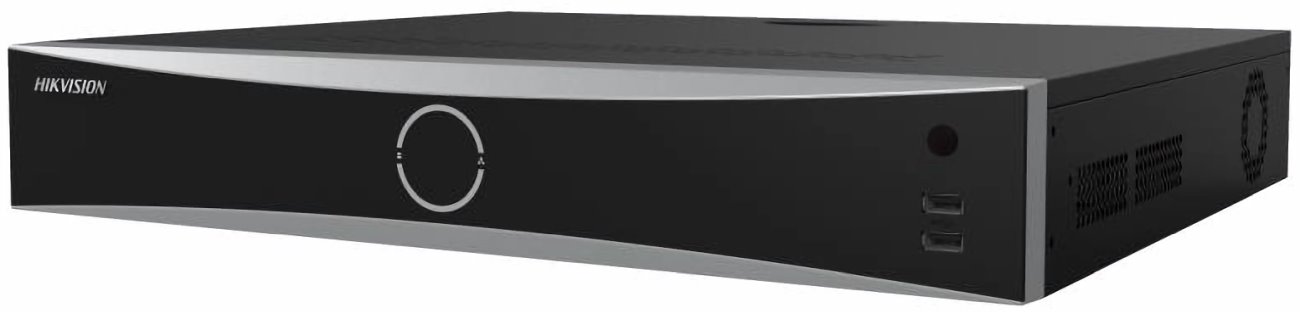

Hikvision NVR DS-7716NXI-I4/S(E), 16 channels, 4x HDD, Alarm, AcuSense

The network video recorder (NVR) from manufacturer Hikvision serves for recording up to 16 IP cameras in various resolutions up to 32 Mpx with data storage on 4x SATA HDD up to 10 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/9, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 2x HDMI (4K), 1x VGA, and a power AC connector. The maximum power consumption of the recorder without HDD is 30 W. For easy management of the camera system, there is a mobile Hik-Connect application allowing live video, camera control, and receiving notifications.

Key Features

• Support for 16 channels for recording
• NVR video analytical functions: Face capture/Face detection (4 channels), Face picture comparison (8 channels), perimeter protection (4 channels), Motion Detection (16 channels)
• Camera video analytical functions: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA, people counting, VCA
• AcuSense - person and vehicle recognition, significantly reducing false alarms
• Maximum input/output data rate 160 Mbps / 256 Mbps
• Recording resolution up to 32 Mpx
• Decoding capacity 32 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 10 TB
• 2x HDMI and VGA video output - both HDMI outputs support up to 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Mouse
