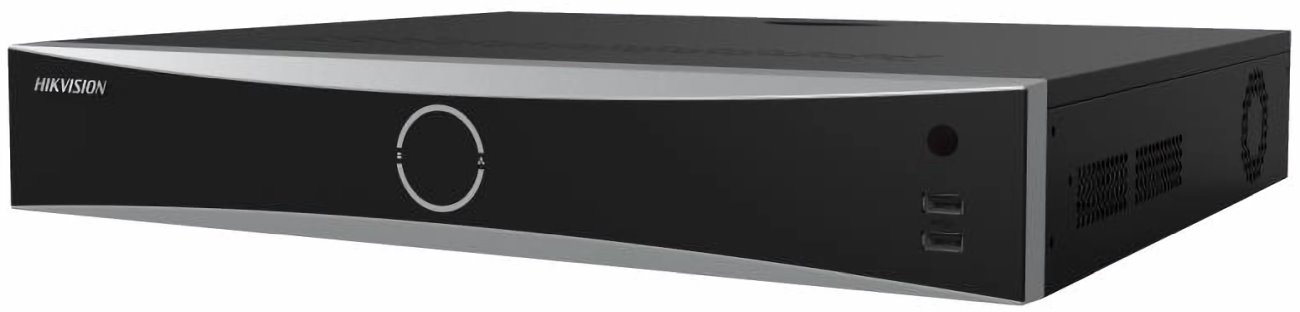

Hikvision NVR DS-7716NXI-K4(D), 16 channels, 4x HDD, Alarm, AcuSense

The network video recorder (NVR) from manufacturer Hikvision serves for recording up to 16 IP cameras in a combination of various resolutions up to 12 MP with data storage on 4x SATA HDD up to 10 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, an alarm 16/4, 2x RS-485, 1x RS-2323, 2x USB 2.0, 1x USB 3.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 20 W. For easy management of the camera system, the mobile Hik-Connect application allows live video, camera control, and receiving notifications.

Key Features

• Support for 16 channels for recording
• NVR Video Analytics Functions: Face capture/Face detection (1 channel), Face picture comparison (4 channels), perimeter protection (2 channels), Motion Detection (16 channels)
• Video Analytics Functions from Cameras: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA
• AcuSense - recognition of people and vehicles, significantly reducing false alarms
• Maximum input/output bitrate 160 Mbps / 160 Mbps
• Recording resolution up to 12 MP
• Decoding capacity of 12 channels (1080p @ 30 fps)
• 4x SATA HDD with capacity up to 10 TB
• HDMI and VGA video output - HDMI output up to 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/4

Package Contents

• Device
• Patch cable
• (4) SATA cables (data and power) + screws
• Power cable
• Mouse
