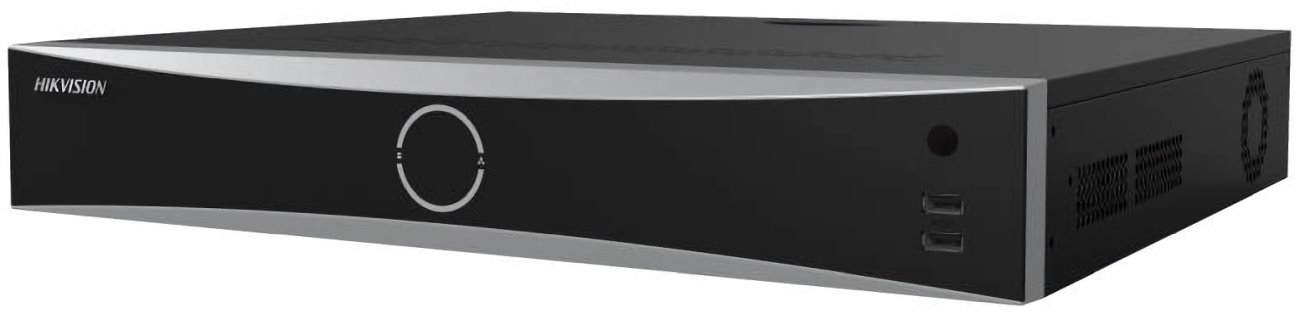

Hikvision NVR DS-7732NXI-I4/16P/S(E), 32 channels, 4x HDD, 16x PoE, Alarm, AcuSense

The top-notch recording solution allows the connection of up to 32 IP cameras with PoE power of up to 200 W, significantly simplifying both infrastructure and installation. Support for a combination of different resolutions up to 32 Mpx and high data rates of 256 / 160 Mb/s ensure detailed recording even in demanding environments. The main advantage is advanced analysis of people and vehicles based on Deep Learning AcuSense technology, which significantly reduces false alarms and increases the efficiency of object security. Resolutions of 32 Mpx or 24 Mpx are available only for 4 channels.

Smart features, data savings, and maximum overview

Advanced VCA features enable automatic image analysis, perimeter protection, people counting, heat map creation, and intrusion detection. The system supports face recognition and capture on multiple channels and the insertion of data from cash register systems directly into the recording. Modern H.265+ compression offers up to 75% data volume savings, while four SATA slots with a capacity of up to 16 TB per disk provide ample storage space. Remote management is easy with Hik-Connect and DDNS. Face recognition and perimeter protection cannot be enabled simultaneously. Enabling one feature will make the other feature unavailable.

Key features

• 32 IP channels with PoE – support for IEEE 802.3af/at, power up to 200 W
• Resolution up to 12 Mpx and data rate of 256 / 160 Mb/s
• Deep Learning AcuSense – analysis of people and vehicles, significant reduction of false alarms
• Face recognition and capture – 1 channel in stream, comparison on up to 4 channels
• H.265+ – up to 75% data volume savings
• Support for VCA features and perimeter protection (people counting, heat maps, area intrusion)
• Integration of POS data into recording (up to 16 channels)
• Storage 4× SATA – capacity up to 16 TB per disk
• Ports: 2× 4K HDMI output, 1× Full HD VGA output, 1× CVBS video output (BNC)
• 2× USB 2.0, 1× USB 3.0, 1× RJ-45, 16× RJ-45 (PoE support), 1×12 V DC (managed) output
• 16× alarm input, 9× alarm output, 1× audio input/output, 1× eSATA, 1× RS-232, 2× RS-485

Package contents

• Device
• Power cable
• Rack mounts
• Mouse
