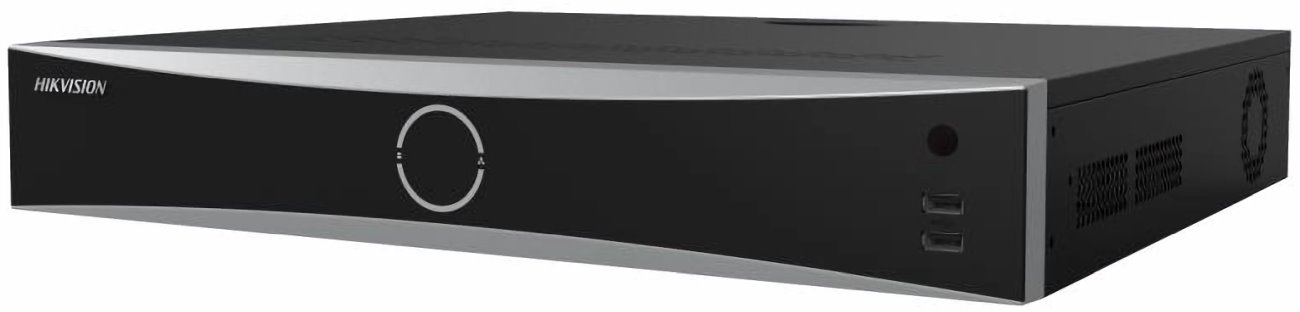

Hikvision NVR DS-7732NXI-I4/S(E), 32 channels, 4x HDD, Alarm, AcuSense

The network video recorder (NVR) from manufacturer Hikvision is used for recording up to 32 IP cameras in combination with various resolutions up to 32 Mpx with data storage on 4x SATA HDDs up to 10 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/9, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 2x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 30 W. For easy management of the camera system, the mobile Hik-Connect application allows for live video, camera control, and receiving notifications.

Key Features

• Support for 32 channels for recording
• NVR video analytics features: Face capture/Face detection (4 channels), Face picture comparison (8 channels), perimeter protection (4 channels), Motion Detection (32 channels)
• Camera video analytics features: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA, people counting, VCA
• AcuSense - person and vehicle recognition, significantly reducing false alarms
• Maximum input/output data rate 256 Mbps / 256 Mbps
• Recording resolution up to 32 Mpx
• Decoding capacity 32 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 10 TB
• 2x HDMI and VGA video output - both HDMI outputs up to 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Mouse
