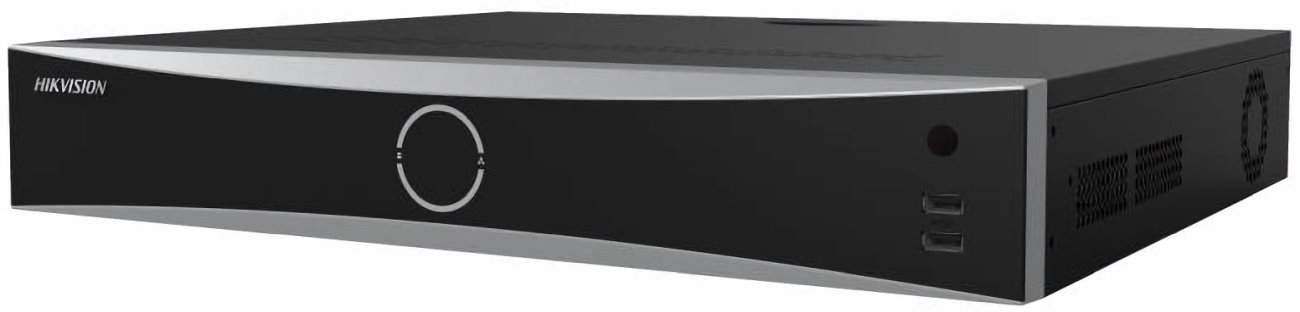

Hikvision NVR DS-7732NXI-K4/16P(D), 32 channels, 4x HDD, 16x PoE, Alarm, AcuSense

The network video recorder (NVR) from manufacturer Hikvision serves for recording up to 32 IP cameras in combination with various resolutions up to 12 MP with data storage on 4x SATA HDD up to 10 TB per disk. The recorder features 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget of 200 W, audio input/output, alarm 16/4, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD and PoE is 20 W. For easy management of the camera system, there is a mobile Hik-Connect application that allows live video, camera control, and receiving notifications.

Key Features

• Support for 32 channels for recording
• NVR video analytic functions: Face capture/Face detection (1 channel), Face picture comparison (4 channels), perimeter protection (2 channels), Motion Detection (32 channels)
• Camera video analytic functions: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA
• AcuSense - recognition of persons and vehicles, significantly reducing false alarms
• Maximum input/output data rate 256 Mbps / 160 Mbps
• Recording resolution up to 12 MP
• Decoding capacity of 12 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget 200 W
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Rack mounts
• Mouse
