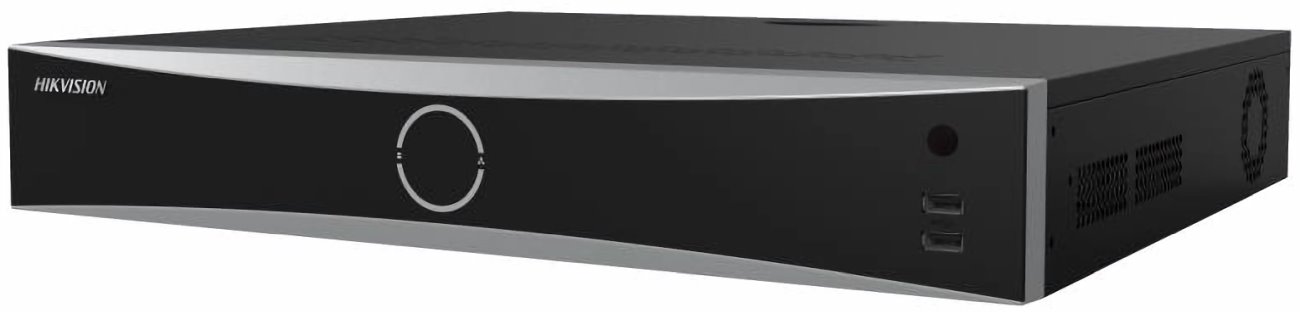

Hikvision NVR DS-7732NXI-K4(D), 32 channels, 4x HDD, Alarm, AcuSense

The network video recorder (NVR) from manufacturer Hikvision serves for recording up to 32 IP cameras in combination of various resolutions up to 12 MP with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, 16/4 alarm, 2x RS-485, 1x RS-232, 1x USB 2.0, 1x USB 3.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 20 W. A mobile Hik-Connect application is available for easy management of the camera system, allowing live video, camera control, and receiving alerts.

Key Features

• Support for 32 channels for recording
• NVR video analytic features: Face capture/Face detection (1 channel), Face picture comparison (4 channels), perimeter protection (2 channels), Motion Detection (16 channels)
• Camera video analytic features: Face capture/Face detection, perimeter protection, falling objects from buildings, Motion Detection, ANPR, VCA
• AcuSense - person and vehicle recognition, significantly reducing false alarms
• Maximum input/output data rate 256 Mbps / 160 Mbps
• Recording resolution up to 12 MP
• Decoding capacity of 12 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/4

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Mouse
