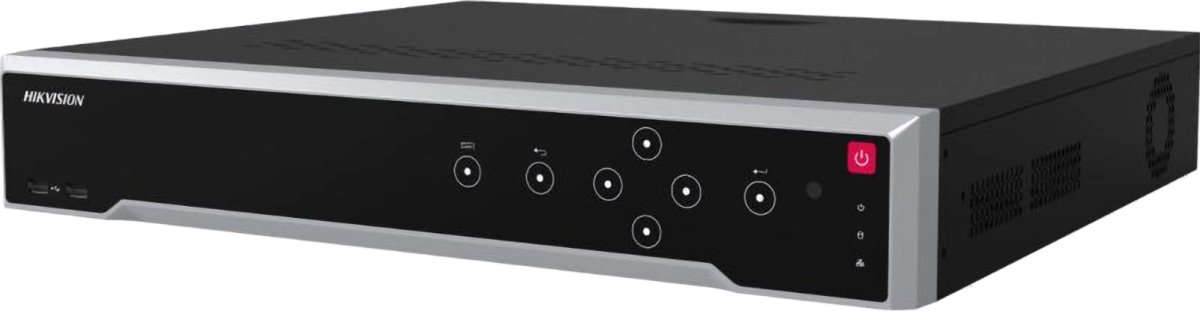

Hikvision NVR DS-7764NI-M4, 64 channels, 4x HDD, Alarm

The network video recorder (NVR) from the manufacturer Hikvision serves for recording up to 64 IP cameras in a combination of various resolutions up to 32 Mpx with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/9, 2x RS-485, 1x RS-2323, 1x USB 2.0, 1x USB 3.0, 1x HDMI (8K), 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 15 W. For easy management of the camera system, there is a mobile Hik-Connect application that allows live video, camera control, and receiving notifications.

Key Features

• Support for 64 channels for recording
• Video analytic functions from cameras: heat map, ANPR, VCA, people counting, line crossing, motion detection
• Maximum input/output data rate 400 Mbps / 400 Mbps
• Recording resolution of up to 32 Mpx
• Decoding capacity of 40 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB + 1x eSata
• 2x HDMI and VGA video output - HDMI output with a resolution of 8K and the second 4K
• 2x Ethernet 10/100/1000 Mbps
• 1x RS-232 + 2x RS-485
• Audio 1/1 + Alarm 16/9

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Power cable
• Rack mounts
• Mouse
