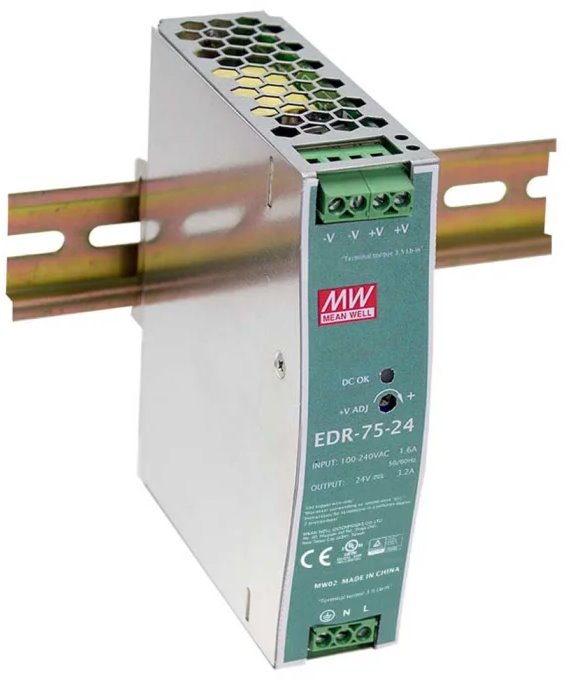

MEAN WELL EDR-75-24 Switching power supply for DIN rail

The EDR-75 series sources are affordable industrial power supplies with a metal chassis and ultra-narrow profile. The EDR-75-24 model provides a direct current output voltage of 24 V with an adjustable range of 24 V - 28 V. It is mounted on DIN rails TS-35/7.5 and TS-35/15, occupying 32 mm in width. The power supply is ready for a wide input voltage range of from 90 V AC to 264 V AC and meets the European standard EN 61000-3-2.

The outer casing of the power supply is made of plastic, which effectively protects against electric shock. With an efficiency of up to 87.5 %, the power supply can operate in a temperature range of -20 to 60 °C. Thanks to the provision of constant current and overload protection, it has wide applications in both domestic and industrial installations.

Key Features

• Industrial power supply for DIN rail with ultra-narrow profile
• Output voltage 24 V DC
• Output adjustment range 24–28 V
• DIN rail mounting
• Input voltage 90–264 V AC
• Efficiency up to 87.5 %
• Plastic enclosure with protection against electric shock
• Overload protection
