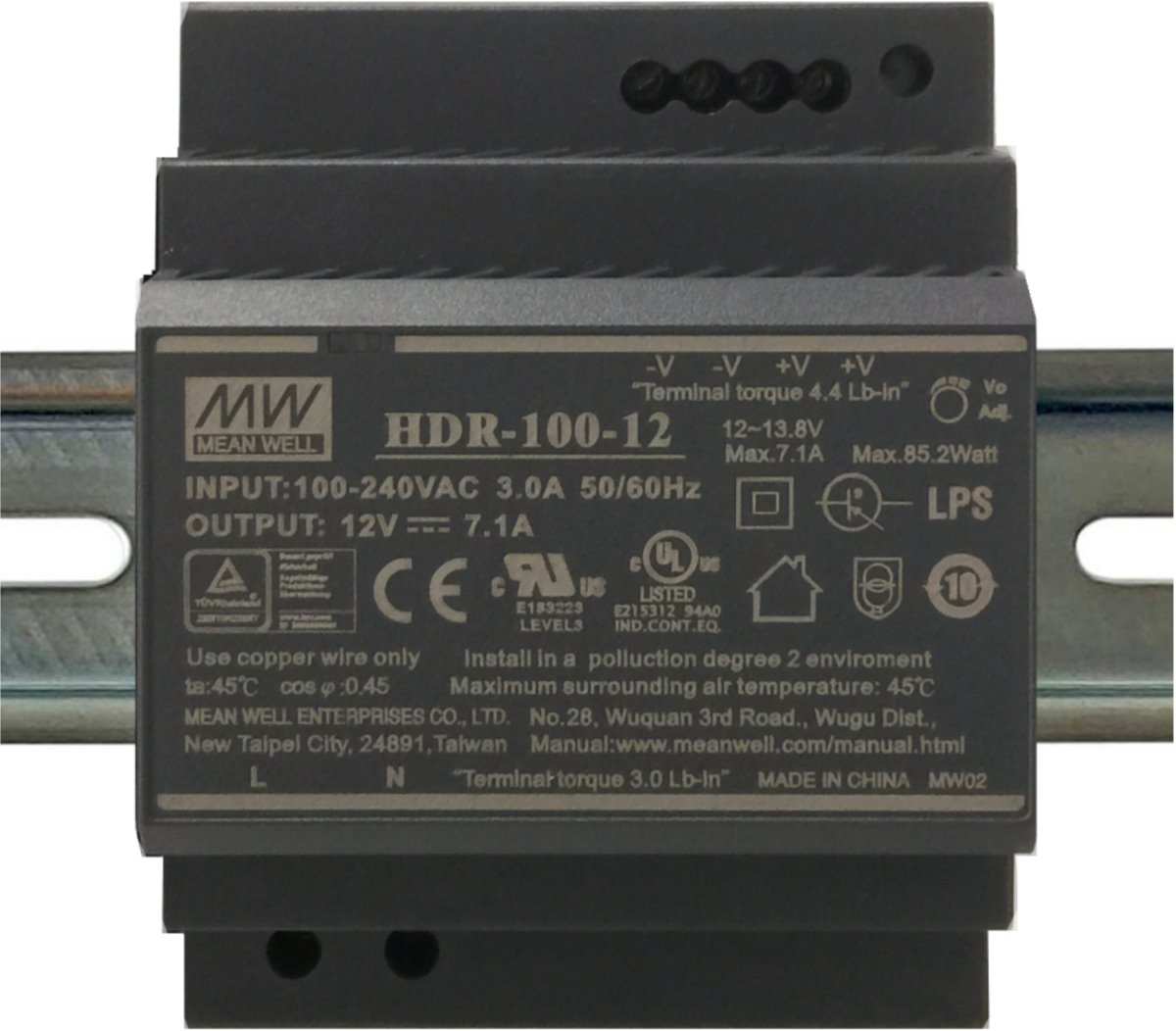

MEAN WELL HDR-100-12 Industrial power supply for DIN rail, 100W, 12V

The HDR-100 series power supplies are affordable ultra-slim units. The HDR-100-12 model provides a direct current output voltage of 12V with the option to regulate it between 12V - 13.8V. It mounts on DIN rails TS-35/7.5 and TS-35/15, taking up 70mm in width (equivalent to 4SU). The power supply is ready for a wide input voltage range from 85 V AC to 264 V AC and meets the European standard EN 61000-3-2.

The outer case of the power supply is made of plastic, effectively protecting against electric shock. With efficiency of up to 88 %, the power supply can operate in a temperature range of -30 to 70 °C. Due to its constant current supply and overload protection, it offers a wide range of applications in both domestic and industrial installations.

Key Features

• Output voltage 12 V DC with regulation from 12 to 13.8 V DC
• Mounting on DIN rails TS-35/7.5 and TS-35/15
• Wide input range 85 to 264 V AC
• Efficiency up to 88 %
• Plastic housing with protection against electric shock
• Constant current mode
• Overload protection
