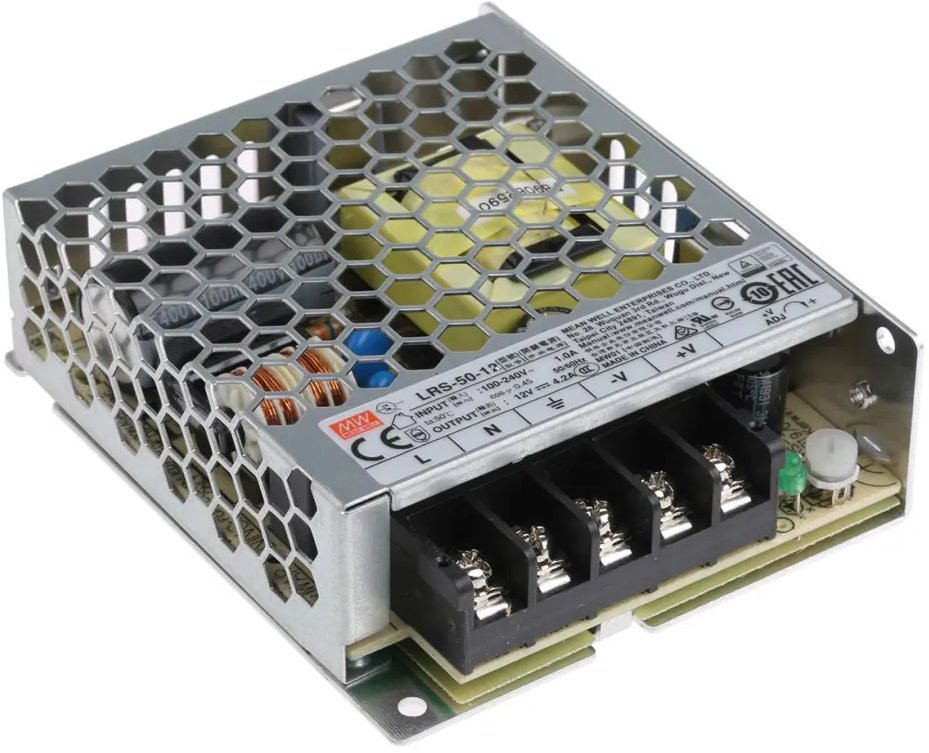

MEAN WELL LRS-50-12 Switching Power Supply, 50W, 12V

The LRS-50 series power supplies are affordable industrial power supplies in a metal perforated chassis. The model LRS-50-12 provides a direct current output voltage of 12 V with a regulation range of 10.2 V - 13.8 V. The power supply is designed for a wide input voltage range of from 88 V AC to 264 V AC and meets the European standard EN 61000-3-2.

With efficiency up to 86 %, the power supply can operate in a temperature range of -30 to 70 °C. Thanks to its constant current delivery and overload protection, it has widespread applications in both home and industrial installations.

Key Features

• Output voltage 12 V DC
• Output voltage regulation 10.2–13.8 V
• Wide input range 88–264 V AC
• Efficiency up to 86 %
• Operating temperature -30 to 70 °C
• Overload protection
• Constant current mode
