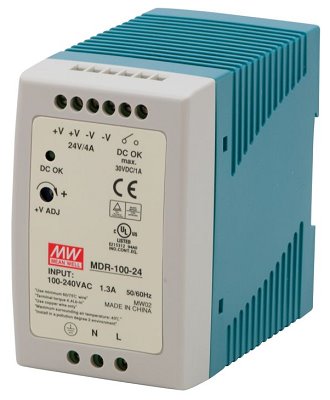

MEAN WELL MDR-100-24 Switching power supply for DIN rail 100W 24V

The MDR-100 series power supplies are affordable ultra-thin power sources. The MDR-100-24 model provides a direct current output voltage of 24 V with adjustable options in the range of 24 V - 30 V. It can be mounted on TS-35/7.5 and TS-35/15 DIN rails, taking up 55 mm in width. The power supply is ready for a wide range of input voltages from 85 V AC to 264 V AC and meets the European standard EN 61000-3-2.

The external casing of the power supply is made of plastic, which effectively protects against electric shock. With an efficiency of up to 86 %, the power supply is capable of operating in a temperature range of -10 to 60 °C. Thanks to the supply of constant current and overload protection, it has wide application possibilities in both domestic and industrial installations.

Key Features

• Output voltage 24 V DC
• Output adjustment range 24–30 V
• Input voltage 85–264 V AC
• Plastic enclosure for enhanced safety
• Efficiency up to 86 %
• Constant current mode
• Overload protection
