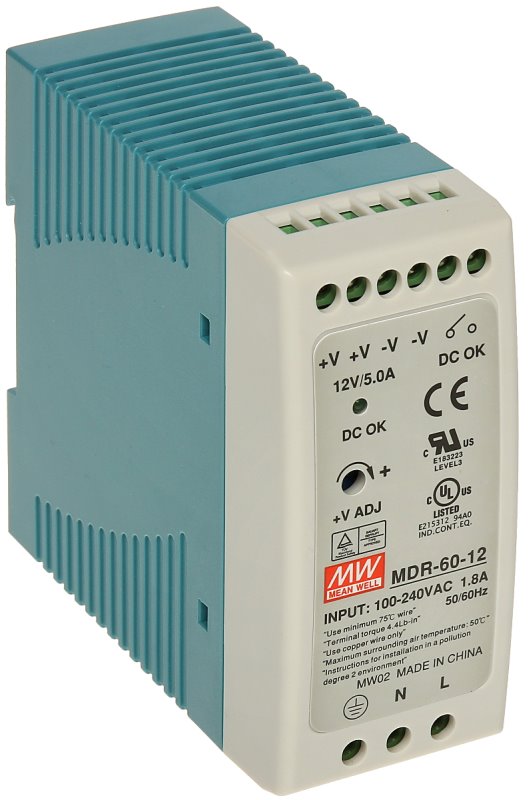

MEAN WELL MDR-60-12 switching power supply for DIN rail 60W 12V

The MDR-60 series power supplies are affordable ultra-slim power supplies. The MDR-60-12 model provides a direct current output voltage of 12 V with adjustable range from 12 V to 15 V. It can be mounted on TS-35/7.5 and TS-35/15 DIN rails, occupying 40 mm in width. The power supply is ready for a wide range of input voltages from 85 V AC to 264 V AC and meets the European standard EN 61000-3-2.

The outer casing of the power supply is made of plastic, which effectively protects against electric shock. With efficiency of up to 86 %, the power supply is capable of operating within a temperature range of -20 to 70 °C. Thanks to its constant current supply and overload protection, it has wide application possibilities both in home and industrial installations.

Key Features

• Output voltage 12 V DC
• Output regulation range 12–15 V
• Input voltage 85–264 V AC
• Plastic casing for enhanced safety
• Efficiency up to 86 %
• Constant current mode
• Overload protection
