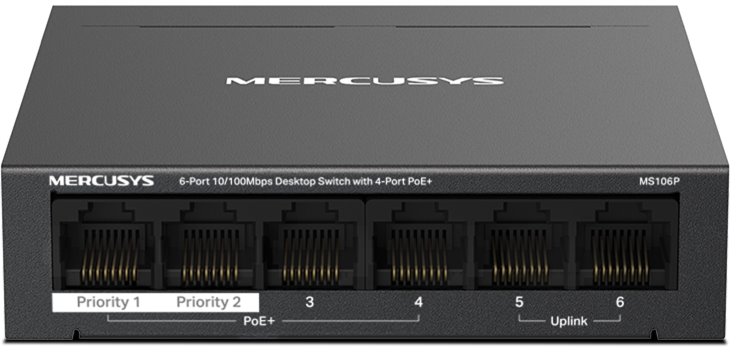

MERCUSYS MS106P PoE Switch

The desktop switch provides a total of 6 ports, including 4 PoE+ 10/100 Mbps ports and 2 standard RJ45 ports, allowing easy connection of computers, IP cameras, or access points. Each PoE port delivers up to 30 W, with a total PoE capacity of 67 W, enabling both data and power transmission over a single cable. Thanks to Plug & Play, installation is quick and simple with no configuration required, and the durable metal enclosure ensures efficient heat dissipation and long device lifespan.

Network stability and security

For enhanced network stability and security, the switch features an isolation mode that allows traffic separation for specific ports with a single click. Two uplink ports provide connection to the internet and to an NVR, while Extend Mode extends PoE range up to 250 m, ideal for longer distances between devices. The device is compatible with all PD devices supporting the IEEE 802.3af/at standard, ensuring wide applicability.

Reliable operation and flexible installation

The PoE Auto Recovery feature automatically restarts unresponsive or powered-off PoE devices, maintaining network stability and reliability. The switch supports data rates of 10/100 Mbps, jumbo frames up to 2 KB, and a MAC address table with a capacity of 2K. Installation can be desktop or wall-mounted, providing flexibility for small offices or home networks with simple management and stable performance.

Key features

• 4× PoE+ 10/100 Mbps ports and 2× standard RJ45 ports
• PoE power up to 30 W per port, total PoE capacity 67 W
• Data and power transmission over a single cable
• PoE range up to 250 m in Extend Mode
• 2 uplink ports for internet and NVR
• PoE Auto Recovery
• Durable metal enclosure
• Supports jumbo frame 2 KB and MAC table 2K
• Desktop or wall-mount installation

Package contents

• Device
• Power adapter 53,5 V / 1,31 A
