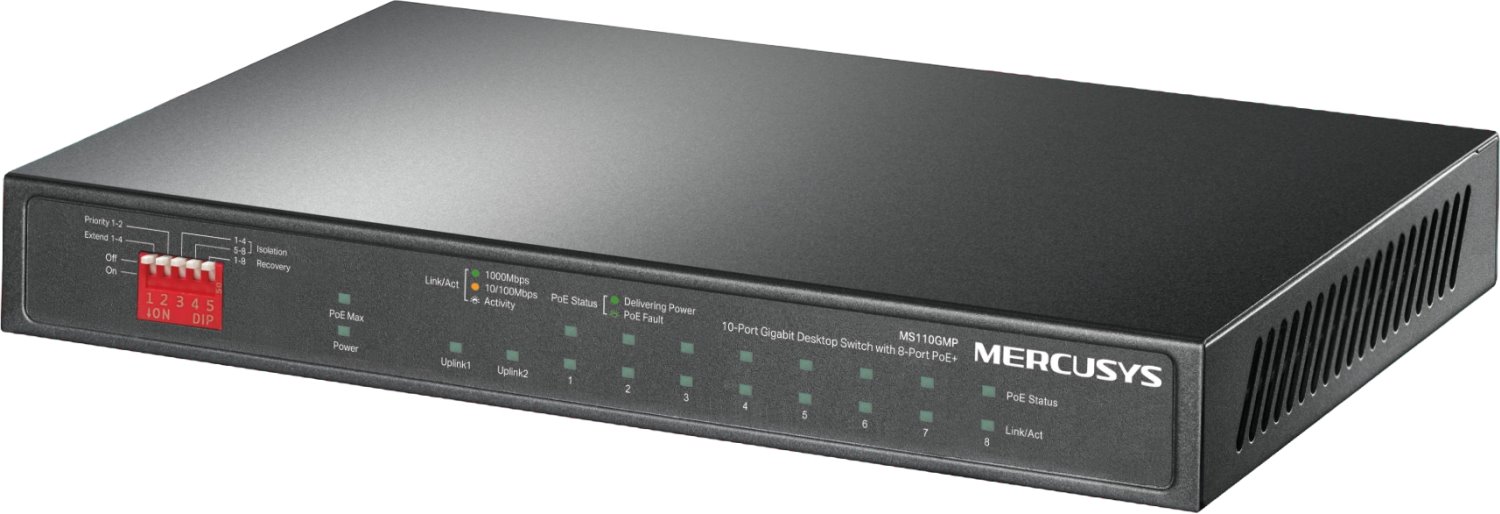

MERCUSYS MS110GMP PoE Switch

The desktop Gigabit switch offers 8 PoE+ ports and 2 Gigabit uplink ports for fast, reliable data transmission in small to medium-sized networks. With IEEE 802.3af/at support, each PoE port can deliver up to 30 W of power, while the total available budget reaches 111 W. Data and power are carried over a single Ethernet cable, greatly simplifying the installation of network devices such as IP cameras, access points, or VoIP phones. Extend mode further increases the transmission range up to 250 meters, which is useful when deploying devices over longer distances.

Advanced modes for performance and security

For demanding applications, a priority mode is available to ensure higher priority for ports 1 and 2, maintaining quality of service even under heavy load. The isolation mode then separates communication between client ports with a single click for higher security and better network performance. There is also PoE Auto Recovery, which automatically restarts unresponsive PoE devices to ensure uninterrupted operation without manual intervention.

Easy installation and quiet operation

Installation is as simple as Plug & Play, with no complex configuration required. The fanless design enables quiet operation and reduces power consumption, making the device suitable for office or home environments. Robust construction and the option of a physical security lock further enhance reliability and overall security.

Key Features

• 8× Gigabit PoE+ ports and 2× Gigabit uplink ports
• Total PoE power budget 111 W, up to 30 W per port
• Data and power over a single cable, range up to 250 m in Extend mode
• Priority mode for ports 1–2 and isolation mode for higher security
• PoE Auto Recovery for automatic device restart
• Plug & Play installation with no configuration
• Quiet operation thanks to fanless design
• Option for physical security lock

Package Contents

• Device
• Power adapter 53.5 VDC / 2.43 A
