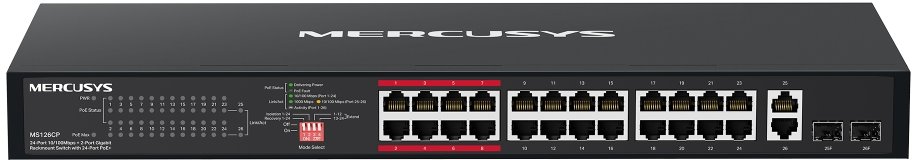

MERCUSYS MS126CP PoE Switch

The rack switch provides an ideal foundation for IP camera systems and corporate networks in small and medium-sized businesses. Thanks to the combination of ports, it offers 24× 10/100 Mbps PoE+ ports for powering devices and transmitting data, while also providing uplink connectivity through 2 Gigabit combo ports (GLAN/SFP). With support for IEEE 802.3af/at standards, it can power a wide range of devices—from cameras to access points—without the need for additional power sources.

Maximum performance and flexibility

Each port delivers up to 30 W of power, with a total budget of 295 W, allowing stable operation even under full load. The practical Extend mode up to 250 m significantly expands installation options even in larger premises. The Priority Mode ensures preference for important devices, such as security cameras, while the Isolation Mode protects the network by separating traffic between ports and increasing overall security.

Simplicity and reliability without compromise

Deployment is a matter of moments thanks to the Plug & Play concept—no complex configuration or IT specialist intervention is required. The PoE Auto Recovery feature automatically restarts unresponsive devices, minimizing downtime and ensuring uninterrupted network operation. The result is an efficient, secure, and easily manageable solution that saves time and costs while providing high performance for daily operations.

Key features

• 24× PoE+ RJ45 ports + 2× combo Gigabit RJ45/SFP slot
• Power up to 30 W per port, total PoE budget 295 W
• Extend mode up to 250 m
• Priority Mode for ports 1–8
• Isolation Mode for traffic separation
• Support for 802.3af/at on 24 ports
• PoE Auto Recovery

Package contents

• Device
• Power cable
• Rack mounts
