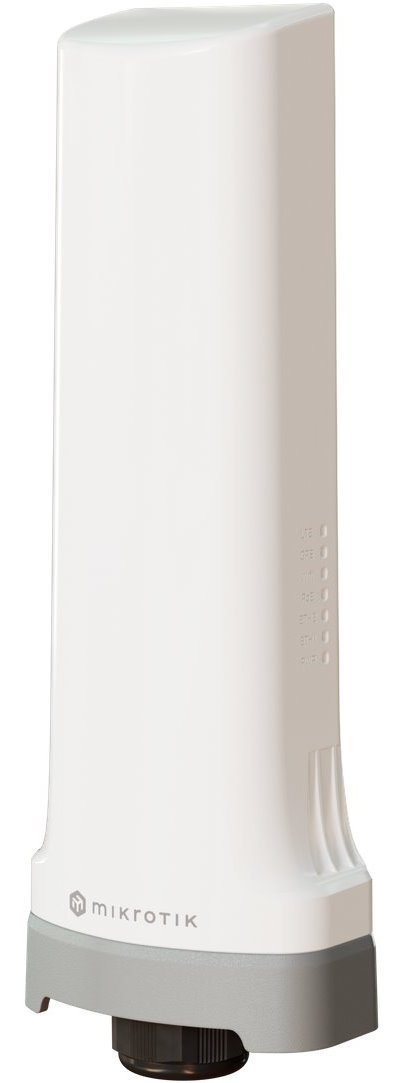

MikroTik CME22-2n-BG77, CME IoT Gateway

CME Gateway is a truly universal outdoor IoT device with IP65 protection, a wide range of connection options and support for protocols or interfaces. The unit uses Cat NB2 and Cat M1 technologies, which are due to the very low monthly price (compared to LTE) and low bandwidth supported by countless mobile operators worldwide including the Czech Republic.

CME Gateway is a bridge between sensors (cable sensors, smart electricity meters, vending machines, inverters and others) and the Internet. The device has two Ethernet ports (the first with PoE IN, the second with PoE Out), PoE budget 25W, built-in GPS (BeiDou, Galileo, GPS, Glonass) for precise location detection including an antenna with a gain of 3.9 dBi and integrated 2.4 GHz Wi-Fi.

Key Features

• GPS support (BeiDou, Galileo, GPS, Glonass) - built-in antenna with 3.9 dBi gain
• Support for LTE Cat NB2 and LTE Cat M1 technologies for small data transfer
• Integrated Wi-Fi (802.11b/g/n), 150 Mbps, 1x1 MIMO
• (2) 10/100Mbps LAN (1x PoE IN, 1x PoE out), PoE budget 25W
• Outdoor chassis, IP65 protection
• RouterOS v7 operating system with L4 license
• SIM card slot (Nano SIM)
• Wide operating temperature -40 to +70°C
• Wide range of power supply: DC connector and PoE (18 .. 57 V DC)

Package contents

• Device
• Power adapter 48V/0.95A
• Gigabit PoE injector
• Retractable metal strap
