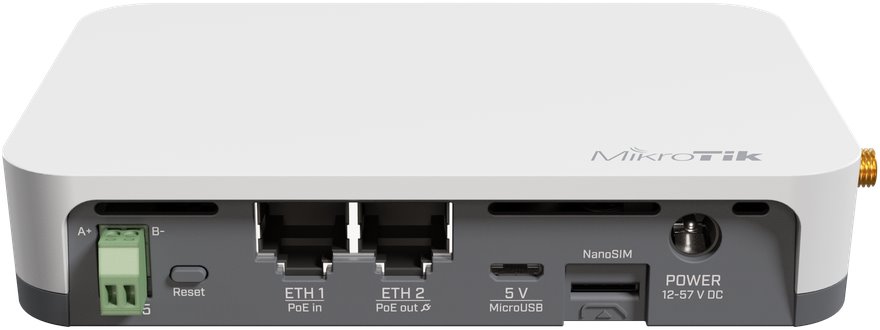

MikroTik KNOT LR8G kit, IoT Gateway

KNOT is a truly versatile device with a wide range of connectivity options and protocol/interface support. It is an IoT Gateway that not only utilizes LoRa technology (863–870 MHz), but also supports Narrow Band 2 and LTE CAT-M1. These cellular technologies are supported by numerous mobile operators worldwide, including in the Czech Republic, thanks to their low monthly cost and narrow bandwidth usage compared to standard LTE.

KNOT can monitor integrated GPIO, convert RS485/Modbus to TCP/IP, and forward Bluetooth (5.2) packets to TCP/IP via HTTPS or MQTT. It can act as a bridge for wired RS485/Modbus sensors, sending data to a Modbus server. In other words, KNOT enables wireless connectivity for wired sensors and actuators like electricity meters and relays. For example, you can manage a vending machine with temperature and humidity sensors connected to KNOT, using just a few megabytes of data per day!

Key Features

• GPS support
• Support for Narrow Band and LTE Cat. M1 technologies
• LoRa network support – 863–870 MHz, 14 dBm
• (3) SMA female connectors – LoRa, GPS, and Cat-M1/NB2
• Integrated Wi-Fi (802.11b/g/n), 300 Mbps, 2x2 MIMO
• (2) 10/100 Mbps Ethernet ports (1x PoE IN, 1x PoE OUT)
• Built-in Bluetooth 5.2
• RouterOS operating system with L4 license and MQTT support
• SIM card slot (Nano SIM)
• Additional RS485/Modbus and GPIO interfaces
• Wide operating temperature: -40 to +70 °C
• Flexible power options: DC jack, PoE, Micro USB

Package Contents

• Device
• 24 V / 1.2 A power adapter
• DIN rail mounting kit
• USB A to Micro USB cable
• Set of screws and wall plugs
