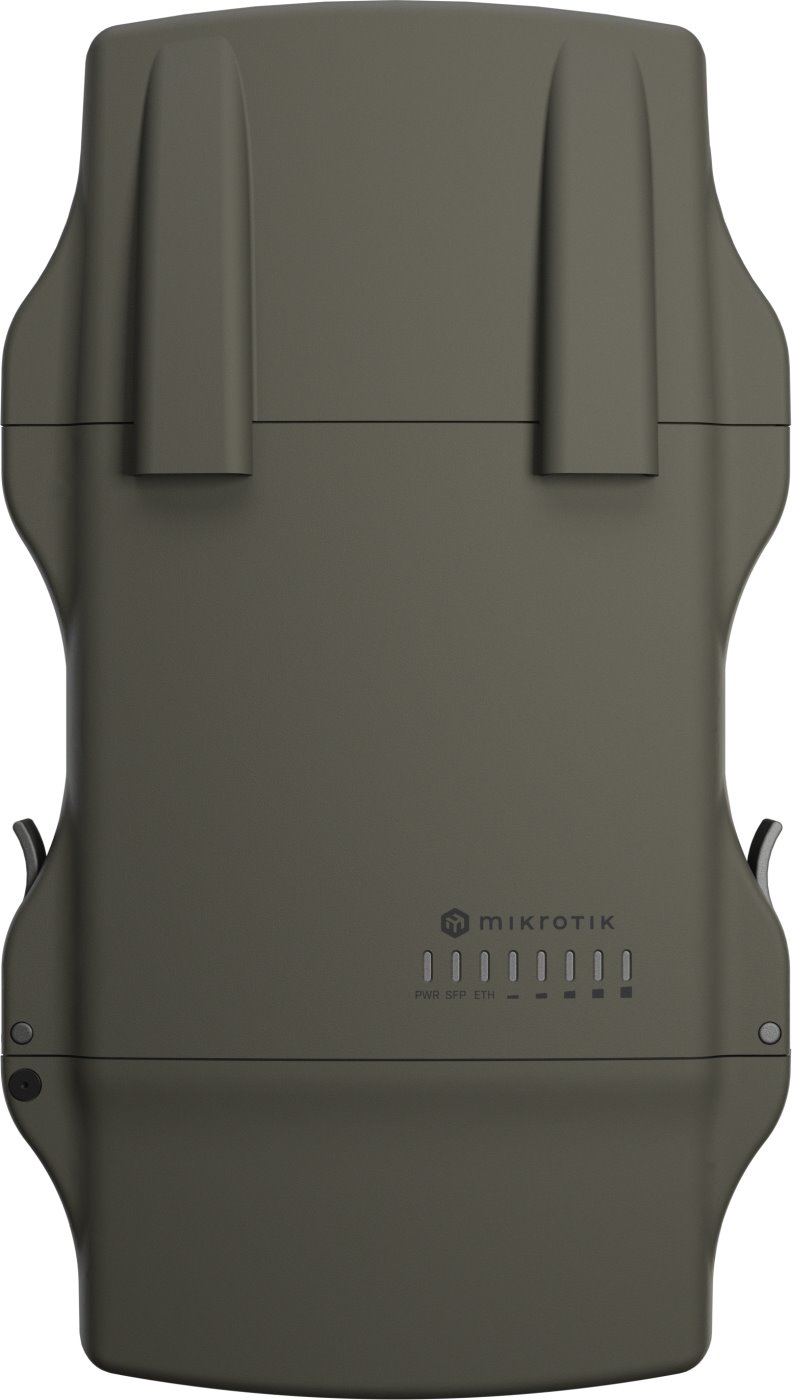

MikroTik L23UGSR-5HaxD2HaxD-NM, NetMetal ax, Wi-Fi 6

One of the most versatile wireless products from MikroTik. NetMetal ax is a powerful and extra durable outdoor AP with a solid aluminum housing, long range and IP66 degree of protection.

Dual Band Wi-Fi 6 radio part supporting the new 802.11ax standard for wireless connections with speeds of 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) with 2x2 MIMO. NetMetal ax is equipped with a Gigabit LAN port with PoE support (18 to 28 V DC), an optical SFP port (up to 2.5 Gbps), a power DC jack, 2x RSMA female connectors for antenna connection, USB port, NanoSIM slot and miniPCI-e slot designed only for LTE or LoRa card.

Key Features

• 2.4 GHz + 5 GHz Dual Band Wi-Fi, 802.ab/g/n/ac/ax, 574 + 2402 Mbps
• (2) RSMA female connectors
• (1) Gigabit LAN
• (1) SFP slot (up to 2.5 Gbps)
• (1) USB 2.0
• (1) miniPCI-e slot (for LTE and LoRa only)
• Powerful Dual-Core CPU (IPQ-5010), 800 MHz
• 256 MB RAM
• 128 MB storage
• Power supply via DC jack or passive PoE (18 to 28 V DC)
• RouterOS v7 with L4 license

Package contents

• Device
• Power adapter 24 V / 1.2 A
• Passive Gigabit PoE injector
• Metal drawstring
• Attachment to DIN rail
