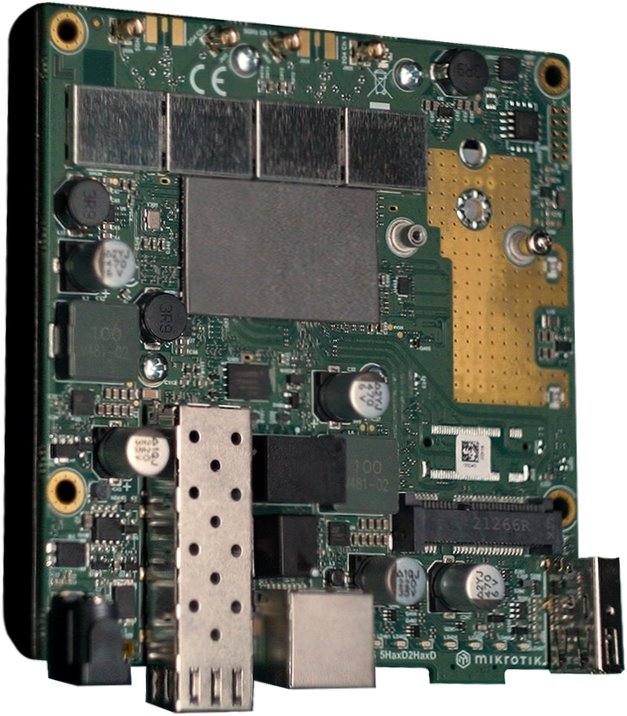

MikroTik RouterBOARD L23UGSR-5HaxD2HaxD

Refresh versatile RouterBOARD boards for DIY solutions, which you can use as the basis of Access Points, CPE, integrate it into various assemblies such as vending machines, ATMs, cash registers and next. It can also be placed in tin boxes of the same size as the RB411, 911, 912 and 922.

Two independent integrated Wi-Fi 6 radio parts support the new 802.11ax standard for high-speed wireless connections with modulation rates of 2402 Mbps (5 GHz)+ 574 Mbps (2.4 GHz) with 2x2 MIMO. The RouterBOARD is equipped with a Gigabit LAN port with PoE support (18 to 28 V DC), an optical SFP port (up to 2.5 Gbps), a DC power jack, 4x MMCX connectors for connecting antennas , USB port, NanoSIM slot and miniPCI-e slot designed only for LTE or LoRa card.

Key Features

• 2.4 GHz + 5 GHz Wi-Fi, 802.ab/g/n/ac/ax, 574 + 2402 Mbps
• (4) MMCX connector for antenna connection
• (1) Gigabit LAN
• (1) SFP slot (up to 2.5 Gbps)
• (1) USB 2.0
• (1) miniPCI-e slot (for LTE and LoRa only)
• Powerful Dual-Core CPU (IPQ-5010), 800 MHz
• 256 MB RAM
• 128 MB storage
• Power supply via DC jack or passive PoE (18 to 28 V DC)
• RouterOS v7 with L4 license
