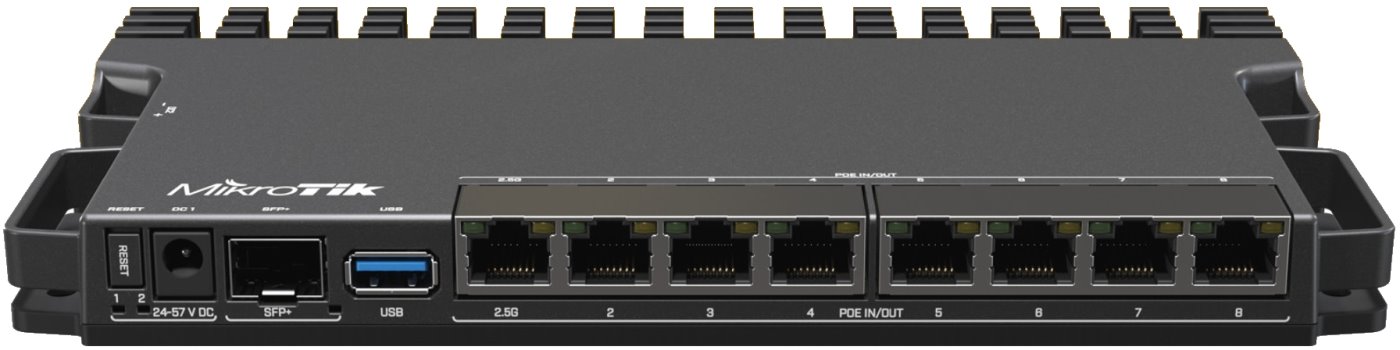

MikroTik RouterBOARD RB5009UPr+S+IN

RB5009 is a brand new series of RouterBOARDs that comes with passive cooling, innovative to futuristic design and high performance (60 - 90 % higher than RB4011) which is due to the 64-bit ARM processor architecture with a 1400MHz clock, 1 GB of DDR4 RAM and 1 GB of NAND storage. The router has 7× Gigabit LAN, 1× 2.5Gbit LAN with PoE IN and PoE OUT (802.3af/at) on all eight Ethernet ports with with a total PoE budget of 130 W, DC jack or terminal box on the left side (24 .. 57V DC), 1× SFP+ slot and 1× USB 3.0. Thanks to the design of the metal chassis, it is possible to mount the router in a 19" rack with optional accessories. Even 4 routers at once can fit in 1U height thanks to the economical dimensions!

Key Features

• Small, durable and powerful device with ARM 64bit architecture
• CPU 1400 MHz, 4 cores, 1GB RAM, 1GB NAND
• 3 types of power supply - DC jack, terminal block, PoE (24 to 57 V DC)
• PoE IN and PoE OUT on all eight Ethernet ports!
• Passive cooling without fans
• Interfaces: (7) Gigabit, (1) 2.5 Gigabit, (1) SFP/SFP+, (1) USB 3.0
• RouterOS L5 version 7 pre-installed
• Possibility of installation in a 19" rack with optional accessories

Package contents

• Device
• Power adapter 24 V/2 A + power cable
• Screws, dowels
