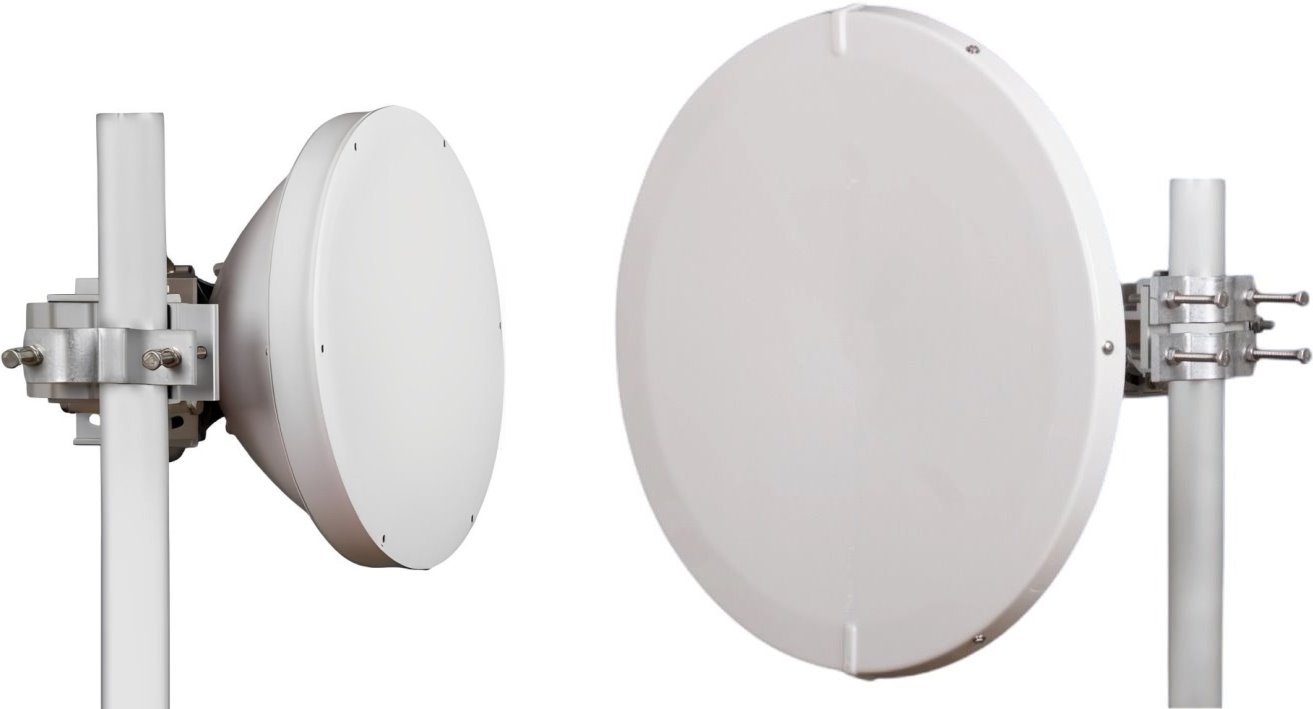

NEC iPASOLINK EX Wireless 80 GHz link, 2 Gbps, 68cm + 40cm antenna

Professional wireless PtP compact E-band radio for data transmission in the 80 GHz band with a capacity of up to 10 Gbps Full Duplex (the package includes a 2 Gbps FD license), utilizing 128 QAM technology, a bandwidth of 2 000 MHz, and AMBR (adaptive modulation and bandwidth in adverse weather). The link features Gigabit Ethernet and two SFP+ interfaces for flexible connectivity. For easy management, it is equipped with web management. Power supply can be via PoE or 48V DC. The package includes two ODU units, a 68 cm antenna, a 40 cm antenna, and additional accessories except for the power supply.

Key Features

• 80 GHz band - (Tx) 71000 - 76000, (Rx) 81000 - 86000
• Modulation up to 128 QAM, bandwidth up to 2 000 MHz
• AMBR - Adaptive modulation and bandwidth
• Data rate up to 10 Gbps Full Duplex - 2 Gbps license included in the package with the option to purchase a software upgrade
• Interface: (1) Gigabit LAN + (2) 10 Gbps SFP+
• Power supply: PoE (802.3bt - 90W) or 48 V DC
• Max. consumption 65 W
• Management: web interface
• 68 cm antenna with a gain of 51 dBi + 40 cm antenna with a gain of 48 dBi included in the package
• Compact all-in-one ODU unit

Package Contents

• ODU unit - Tx Low
• ODU unit - Tx High
• (2) 4pin DC connector
• (1) 68 cm antenna
• (1) 40 cm antenna
• (4) Cable grommet
• (2) Grounding cable - 1.5m
