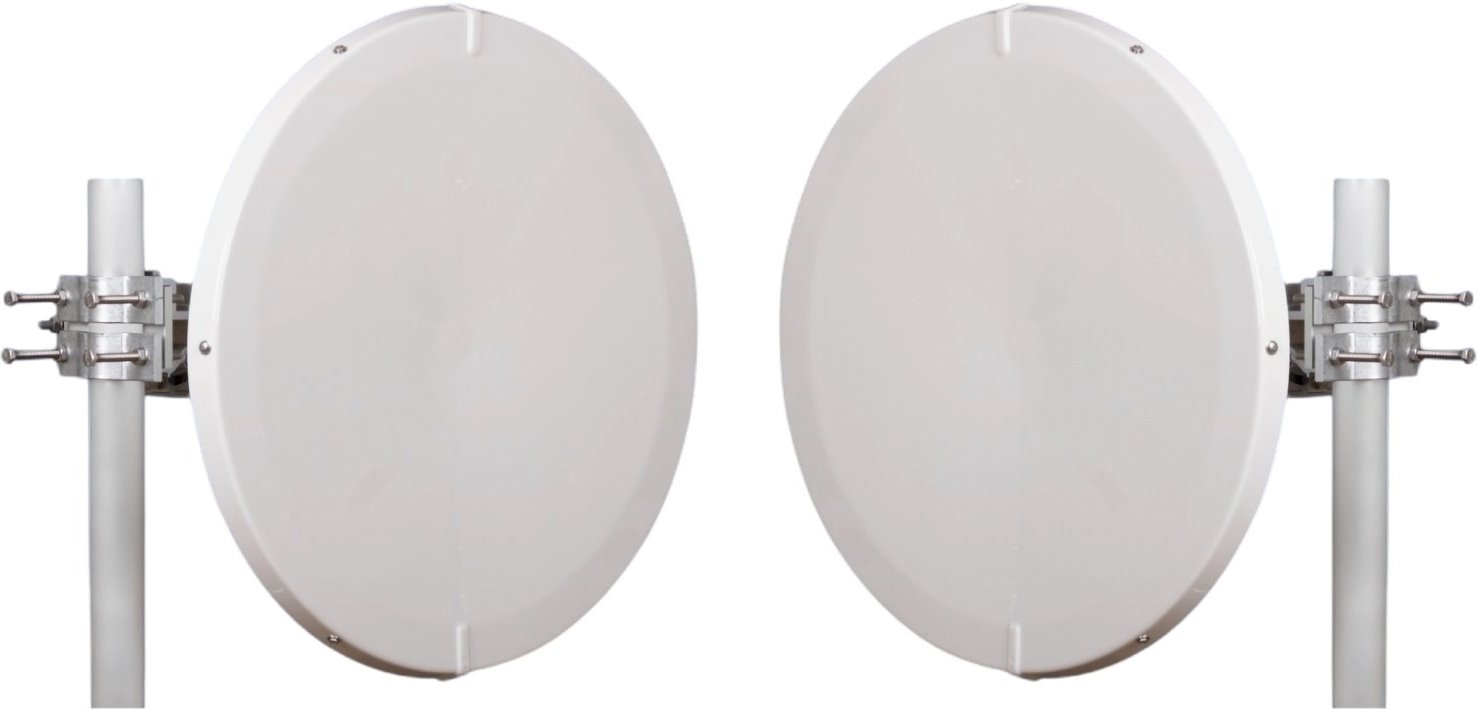

NEC iPASOLINK EX Wireless 80 GHz link, 2 Gbps, 68cm antennas

Professional wireless PtP compact E-band radio for data transmission in the 80 GHz band with a capacity of up to 10 Gbps Full Duplex (the package includes a 2 Gbps FD license) utilizing 128 QAM technology, a bandwidth of 2 000 MHz, and AMBR (adaptive modulation and bandwidth in adverse weather conditions). The link features Gigabit ethernet and two SFP+ interfaces for flexible connectivity. For easy management, it is equipped with web management. Power can be supplied via PoE or 48V DC. The package includes two ODU units, 68 cm antennas, and other accessories aside from power.

Key features

• 80 GHz band - (Tx) 71000 - 76000, (Rx) 81000 - 86000
• Modulation up to 128 QAM, bandwidth up to 2 000 MHz
• AMBR - Adaptive modulation and bandwidth
• Transmission speed up to 10 Gbps Full Duplex - 2 Gbps license included in the package with the option to purchase a software upgrade
• Interface: (1) Gigabit LAN + (2) 10 Gbps SFP+
• Power supply: PoE (802.3bt - 90W) or 48 V DC
• Max. consumption 65 W
• Management: web interface
• 68 cm antennas with a gain of 51 dBi included in the package
• Compact all-in-one ODU unit

Package contents

• ODU unit - Tx Low
• ODU unit - Tx High
• (2) 4pin DC connector
• (2) 68 cm antenna
• (4) Cable gasket
• (2) Grounding cable - 1.5m
