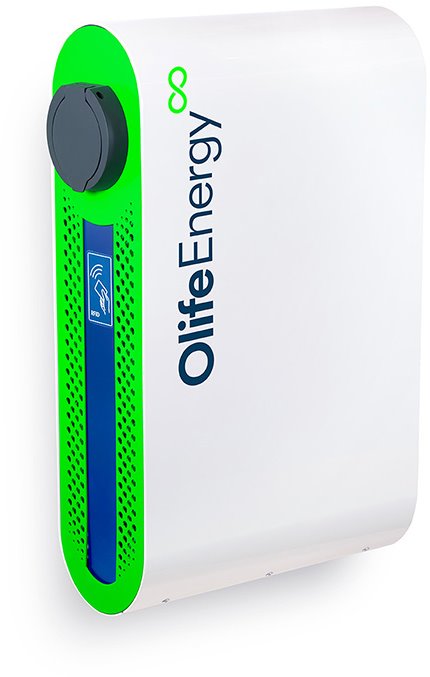

OlifeEnergy DoubleBox BASE, charging station with two sockets, 2x 22kW

The OlifeEnergy DoubleBox charging station is intended for charging electric cars at home, in private garages and in guest houses and is equipped with two Type2 BASE sockets. It features a robust all-metal design and the ability to charge electric cars with alternating current (AC) with a power of up to 22 kW on both sockets at the same time (44 kW in total). The device is also suitable for outdoor use. It is installed either on the wall or on a special profile cemented into the ground. Using the external OlifeEnergy Smartmeter unit, the power of the charging station can be dynamically controlled and excess energy from a solar power plant or a favorable tariff can also be used.

Charging can be started automatically after connecting the vehicle, identification with an RfID card or via a mobile phone. The power of the station can be set in the range of 0 to 44 kW. The station can be connected to HDO, integrated into a smart home, connected to battery storage or integrated with other control systems. Using the external OlifeEnergy SmartMeter unit, it is possible to dynamically control the power of the station and thus prevent the circuit breaker from switching off at high consumption, charge from surplus solar power plants, or from a low tariff.

The station contains only sockets. Cables are not included.

Model ComparisonBASEPLUSCLOUD Breaker Trip Protection Charging at Low Tariff / Spot Prices Static Output Current Setting (According to Pre-Fuse Breaker) Control and Configuration via Local Bus (Modbus RTU over RS 485) Dynamic Power Management Based on Other Consumption Smart Home Integration RfID Authorization10xunlimitedunlimited Charging Records and User Management Communication with PV Inverter Monetization Option Monitoring of 15-Minute Demand Peaks Remote Configuration and Controllocal networkinternet OlifeEnergy Cloud (Data Backup on Server), OCPP
