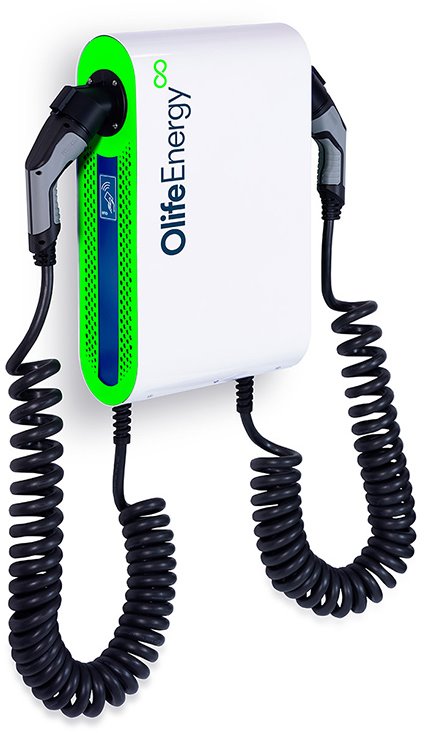

OlifeEnergy DoubleBox BASE, charging station with two twisted cables, 2x 22kW

The OlifeEnergy DoubleBox charging station is designed for charging electric vehicles at home, in private garages, or in guesthouses. It is equipped with two 5-meter coiled cables with Type2 BASE connectors. The station features a robust all-metal design and is capable of AC charging at up to 22 kW on both outputs simultaneously (total 44 kW). The unit is also suitable for outdoor use. It can be mounted on a wall or on a special concrete-embedded mounting profile. With the OlifeEnergy SmartMeter, it is possible to dynamically manage the charging power and make use of surplus energy from a solar power plant or a favorable electricity tariff.

Charging can start automatically when the vehicle is connected, via RFID card identification, or using a mobile phone. The station's power can be set between 0 and 44 kW. It can be connected to ripple control (HDO), integrated into a smart home, connected to a battery storage system, or integrated with other control systems. The OlifeEnergy SmartMeter allows dynamic power control to prevent circuit breaker tripping during high consumption and to enable charging from solar energy surplus or low-tariff electricity.

Model ComparisonBASEPLUSCLOUD Breaker Trip Protection Charging at Low Tariff / Spot Prices Static Output Current Setting (According to Pre-Fuse Breaker) Control and Configuration via Local Bus (Modbus RTU over RS 485) Dynamic Power Management Based on Other Consumption Smart Home Integration RfID Authorization10xunlimitedunlimited Charging Records and User Management Communication with PV Inverter Monetization Option Monitoring of 15-Minute Demand Peaks Remote Configuration and Controllocal networkinternet OlifeEnergy Cloud (Data Backup on Server), OCPP
