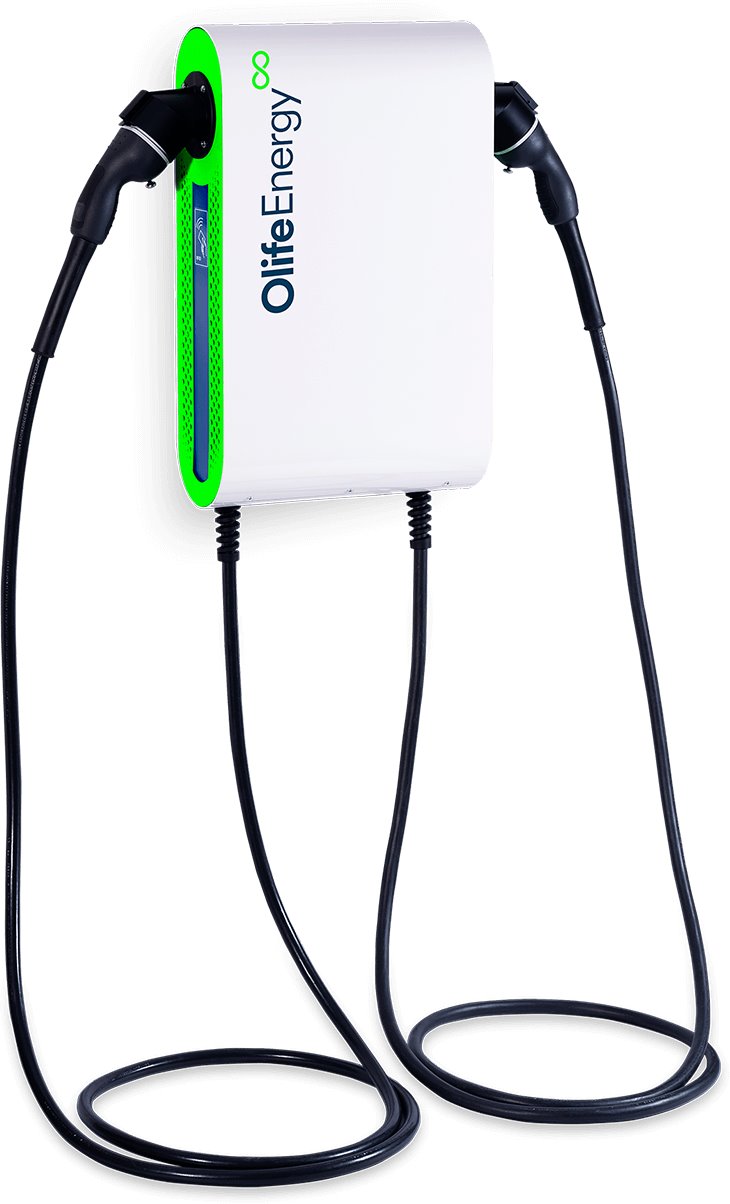

OlifeEnergy DoubleBox CLOUD, charging station with two straight cables, 2x 22kW

The OlifeEnergy DoubleBox CLOUD charging station is designed for charging electric vehicles at home, in private garages, and at guesthouses. It is equipped with two 5-meter straight cables with Type2 BASE connectors. It features a robust all-metal design and is capable of charging electric vehicles with alternating current (AC) up to 22 kW on both sockets simultaneously (total 44 kW). The device is also suitable for outdoor use. It can be installed either on the wall or on a special profile embedded in the ground. With the external OlifeEnergy Smartmeter unit, you can dynamically control the charging station's power and also use surplus energy from a solar power plant or a favorable tariff.

Charging can be started automatically when the vehicle is connected, via RFID card identification, or through a mobile phone. The station’s power can be set within the range of 0 to 44 kW. The station can be connected to HDO, integrated into a smart home, linked with a battery storage system, or integrated with other regulation systems. With the external OlifeEnergy SmartMeter unit, the station’s power can be dynamically controlled to prevent circuit breaker trips during high consumption, charge from solar power plant surpluses, or from a low tariff.

WallBox CLOUD

The charging station features enhanced functionality with the ability to connect to the OlifeEnergy Cloud service and an OCPP server. The OlifeEnergy Cloud service provides remote diagnostics, access management, and charging record tracking. It also allows for the operation of a public charging station. Through OlifeEnergy Cloud, the power of multiple stations can be dynamically managed, and integration with existing monitoring and control (MaR) systems is possible.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
