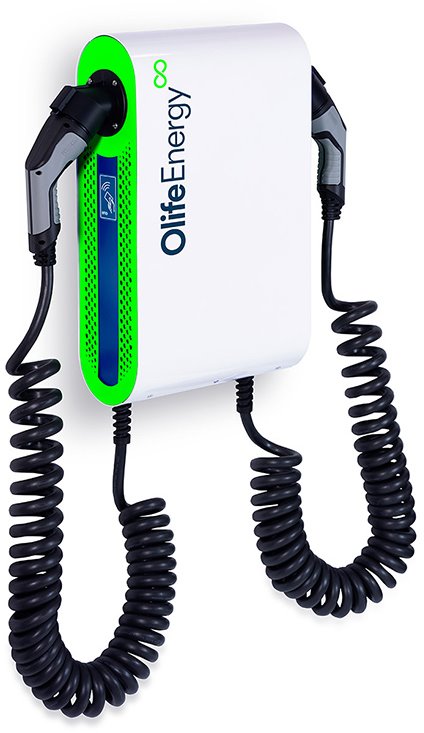

OlifeEnergy DoubleBox CLOUD, charging station with two twisted cables, 2x 22kW

The OlifeEnergy DoubleBox CLOUD charging station is designed for charging electric vehicles at home, in private garages, or in guesthouses. It is equipped with two 5-meter coiled cables with Type2 BASE connectors. The station features a robust all-metal design and is capable of AC charging at up to 22 kW on both outputs simultaneously (total 44 kW). The unit is also suitable for outdoor use. It can be mounted on a wall or on a special concrete-embedded mounting profile. With the OlifeEnergy SmartMeter, it is possible to dynamically manage the charging power and make use of surplus energy from a solar power plant or a favorable electricity tariff.

Charging can start automatically when the vehicle is connected, via RFID card identification, or using a mobile phone. The station's power can be set between 0 and 44 kW. It can be connected to ripple control (HDO), integrated into a smart home, connected to a battery storage system, or integrated with other control systems. The OlifeEnergy SmartMeter allows dynamic power control to prevent circuit breaker tripping during high consumption and to enable charging from solar energy surplus or low-tariff electricity.

WallBox CLOUD

The charging station features enhanced functionality with the ability to connect to the OlifeEnergy Cloud service and an OCPP server. The OlifeEnergy Cloud service provides remote diagnostics, access management, and charging record tracking. It also allows for the operation of a public charging station. Through OlifeEnergy Cloud, the power of multiple stations can be dynamically managed, and integration with existing monitoring and control (MaR) systems is possible.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
