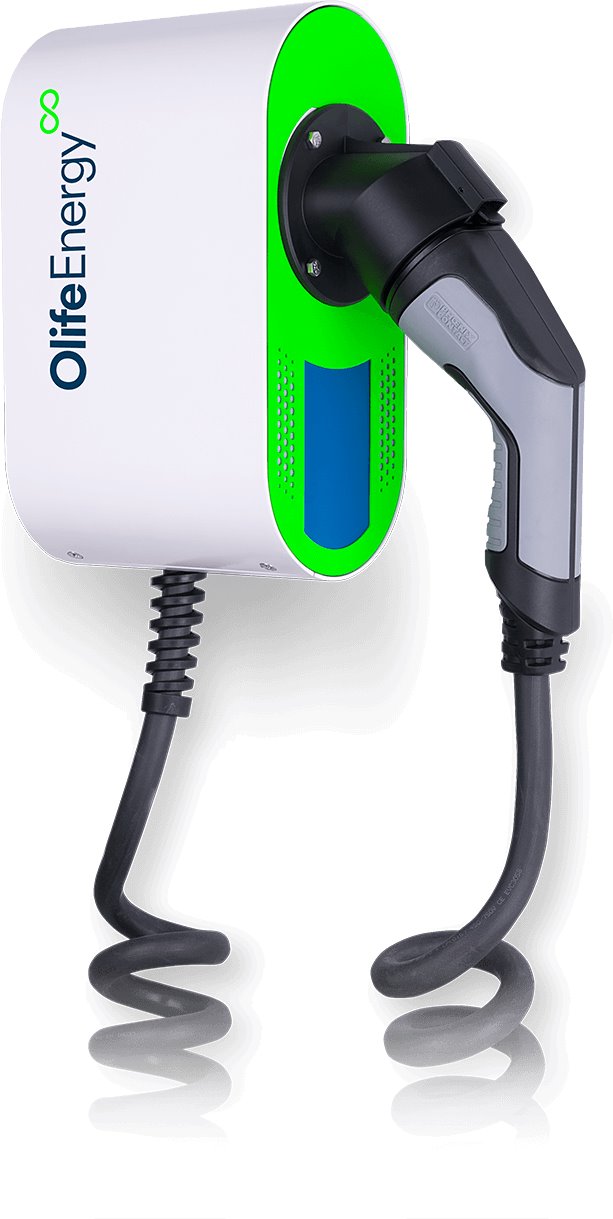

OlifeEnergy WallBox BASE, charging station with twisted cable, 22kW

The OlifeEnergy Wallbox charging station is designed for charging electric vehicles at home, in private garages, and in guesthouses, and is equipped with a 5-meter twisted cable with a Type2 BASE connector. It features a robust all-metal design and the ability to charge electric vehicles with alternating current (AC) with a power output of up to 22 kW. The device is also suitable for outdoor use. It can be installed either on the wall or on a special profile embedded in the ground. Using the external OlifeEnergy Smartmeter unit, the charging station's performance can be dynamically managed, and surplus energy from a solar power plant or a favorable tariff can be used.

Charging can be triggered automatically upon vehicle connection, identification using an RFID card, or via a mobile phone. The station's power output can be set in the range of 0 to 22 kW. The station can be connected to HDO, integrated into a smart home, connected to a battery storage system, or integrated with other control systems. Using the external OlifeEnergy SmartMeter unit, the station's power output can be dynamically controlled to prevent circuit breaker tripping during high consumption, charge from solar power surplus, or use low tariff rates.

Model ComparisonBASEPLUSCLOUD Protection against circuit breaker tripping Charging at low tariff / spot prices Static output current setting (based on the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power management based on other consumption Integration with smart home systems RFID authorization10xunlimitedunlimited Charging record and user management Communication with solar inverter Charging fee possibility Monitoring of 1/4-hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on the server), OCPP
