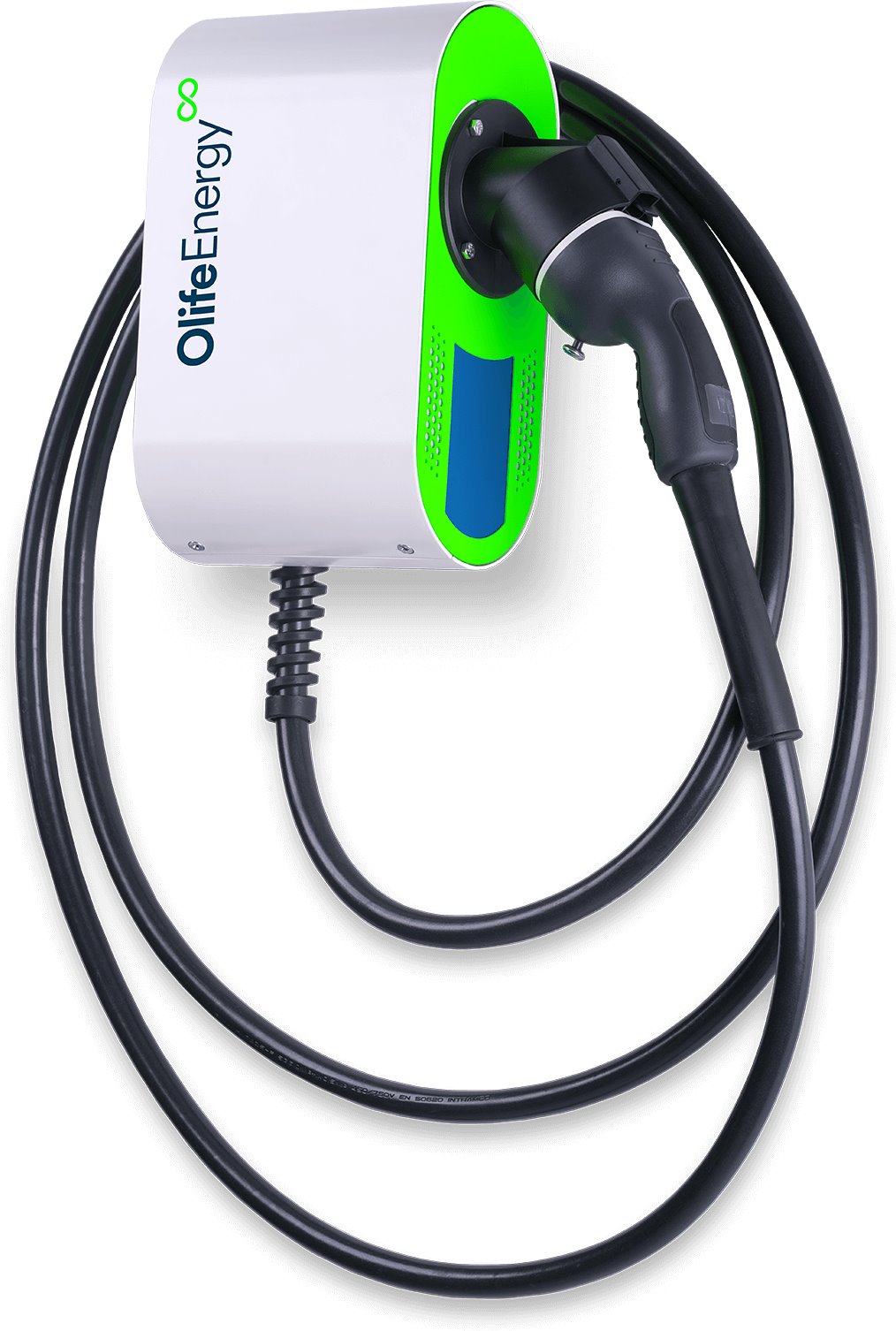

OlifeEnergy WallBox PLUS, charging station with straight cable, 22kW

The OlifeEnergy Wallbox PLUS charging station is designed for charging electric vehicles at home, in private garages, and guesthouses. It is equipped with a 5-meter straight cable with a Type2 BASE connector. It features a robust all-metal design and supports AC charging with power output up to 22 kW. The device is also suitable for outdoor installation and can be mounted on a wall or on a special ground-anchored mounting profile. With the help of an external OlifeEnergy SmartMeter unit, the charging power can be dynamically managed, enabling the use of surplus energy from a solar power plant or a favorable electricity tariff.

Charging can be started automatically after connecting the vehicle, via RFID card identification, or through a mobile phone. The station's output can be set from 0 to 22 kW. It can be connected to HDO (ripple control), integrated into a smart home system, connected to a battery storage system, or integrated with other control systems. Using the OlifeEnergy SmartMeter, users can dynamically manage the station’s power to prevent breaker tripping during high consumption, charge from solar surplus, or take advantage of low electricity tariffs.

WallBox PLUS

The AC station in the PLUS variant offers full control over the charging process. It provides remote control through the home network. Once connected to the application, it allows monitoring and management of charging, user authorization, along with overviews of each user's energy consumption history. The stations are also equipped with communication capabilities with inverters from leading manufacturers, efficiently utilizing solar energy surplus and energy from storage batteries for charging.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
