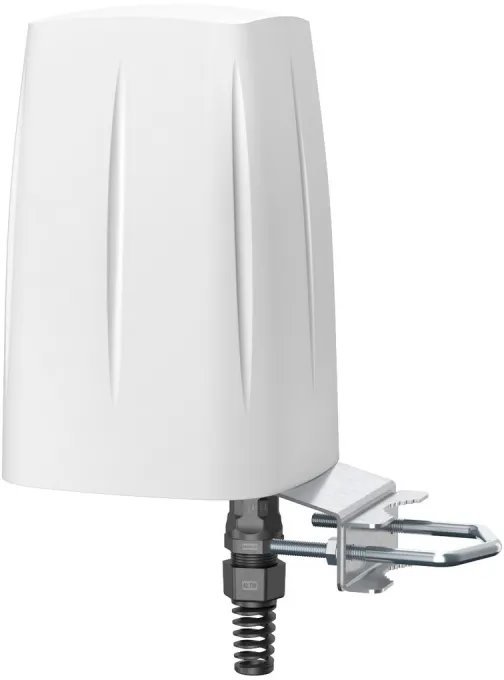

QuWireless Antenna QuSpot for Teltonika RUT2xx

Get a stable and fast internet connection even in places where regular solutions fall short. The outdoor design allows for the placement of a compatible router directly into the antenna, eliminating losses caused by long cables and maximizing the performance of 5G and Wi-Fi. Integrated 2×2 MIMO 5G/LTE antennas and powerful Dual-Band Wi-Fi ensure high throughput, reliable coverage, and accurate localization. The solution is ideal for camera systems, industrial installations, hotspots, and transportation.

Robust casing with IP68 certification protects the device from water, dust, UV radiation, and extreme temperatures from -40 °C to +80 °C. Thanks to the omnidirectional radiation, it is not necessary to precisely aim the antenna at the transmitter, which is especially appreciated in mobile applications. Power and data transmission through a single Ethernet cable using passive PoE and RF connectors (1) RSMA male, (2) SMA male significantly simplify the installation on roofs and masts.

Wi-Fi antenna

• 2400 - 2500 and 5000 - 7200 MHz
• 1x RSMA male
• 2x2 MIMO
• 7.5 dBi

5G/LTE antenna

• 600 - 1400, 1500 - 3000, 3000 - 5000 and 5000 - 6350 MHz
• 2x SMA male
• 2x2 MIMO
• 4.4 dBi

Compatibility

• RUT200
• RUT230
• RUT240
• RUT241
• RUT260
• RUT261
• RUT281

Package contents

• Antenna box
• Mounting bracket
• Clamp and fitting
• Grommet
• Screws
