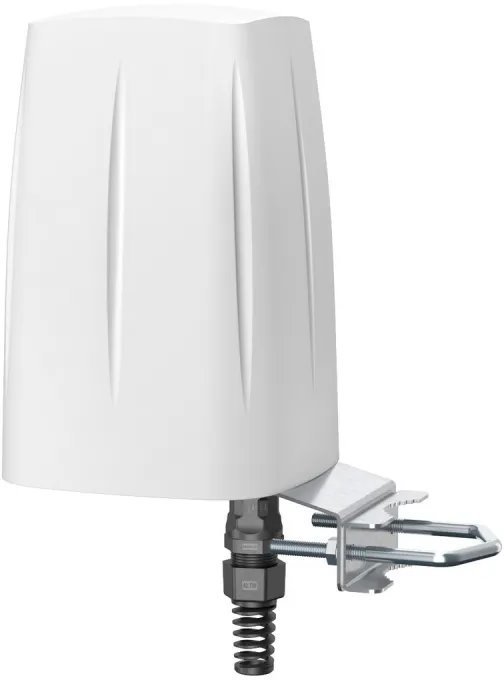

QuWireless Antenna QuSpot for Teltonika RUT360/RUT361

Get stable and fast internet connectivity even where standard solutions fall short. The outdoor design allows for the placement of a compatible router directly into the antenna, eliminating losses caused by long cables and maximizing 5G and Wi-Fi performance. Integrated 2×2 MIMO 5G/LTE antennas and powerful Dual-Band Wi-Fi ensure high throughput, reliable coverage, and precise localization. The solution is ideal for camera systems, industrial installations, hotspots, and transport.

Robust IP68 rated housing protects the device from water, dust, UV radiation, and extreme temperatures from -40 °C to +80 °C. With omnidirectional radiation, there’s no need to precisely point the antenna at the transmitter, which is especially appreciated in mobile applications. Power and data transfer via a single ethernet cable using passive PoE and RF connectors (2) RSMA male, (2) SMA male significantly ease installation on roofs and masts.

Wi-Fi antenna

• 2400 - 2500 and 5000 - 7200 MHz
• 2x RSMA male
• 2x2 MIMO
• 7.5 dBi

5G/LTE antenna

• 600 - 1400, 1500 - 3000, 3000 - 5000 and 5000 - 6350 MHz
• 2x SMA male
• 2x2 MIMO
• 4.4 dBi

Compatibility

• RUT360
• RUT361

Package contents

• Antenna box
• Mounting bracket
• Brackets and clamps
• Grommet
• Screws
