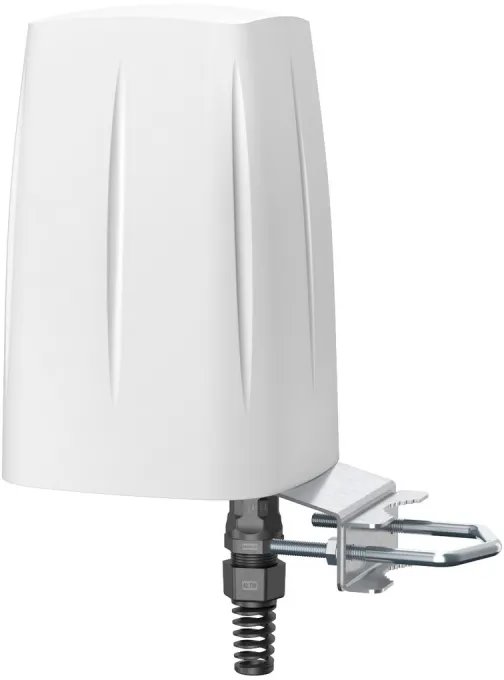

QuWireless Antenna QuSpot for Teltonika RUTX50

Get stable and fast internet connectivity even where conventional solutions fall short. The outdoor design allows for the placement of a compatible router directly into the antenna, eliminating losses caused by long cables and maximizing the performance of 5G and Wi-Fi. Integrated 4×4 MIMO 5G/LTE antennas, powerful Dual-Band Wi-Fi, and active GPS ensure high throughput, reliable coverage, and precise localization. The solution is ideal for camera systems, industrial installations, hotspots, and transportation.

Robust housing with IP68 certification and windspeed resistance of 190 km/h protects the device from water, dust, UV radiation, and extreme temperatures ranging from -40 °C to +75 °C. With omnidirectional radiation, there is no need to precisely direct the antenna at the transmitter, which is particularly appreciated in mobile applications. Power supply and data transmission using a single ethernet cable with passive PoE and RF connectors (2) RSMA male, (5) SMA male significantly simplify mounting on roofs and poles.

Wi-Fi antenna

• 2400 - 2500 and 4700 - 6000 MHz
• 2x RSMA male
• 2x2 MIMO
• 7.5 dBi

LTE antenna

• 600 - 1400, 1500 - 3000, 3000 - 5000 and 5000 - 6350 MHz
• 4x SMA male
• 4x4 MIMO
• 4.4 dBi

GPS antenna

• 1560 - 1610 MHz
• 1x SMA male
• 28 dBi

Compatibility

• RUTM16
• RUTM51
• RUTM54
• RUTM55
• RUTX50

Package contents

• Antenna box
• Mounting bracket
• Bracket and clamp
• Grommet
• Screws
