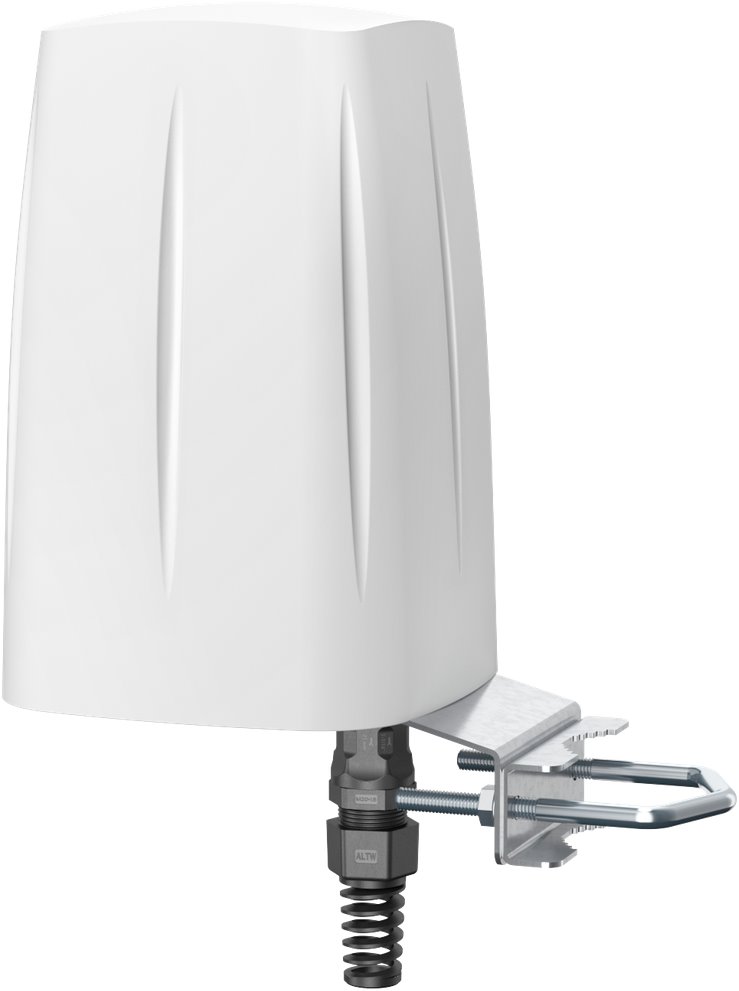

QuWireless Antenna QuSpot for Teltonika TRB500

Get a stable and fast internet connection even where ordinary solutions are not enough. The outdoor design allows for the placement of a compatible router directly into the antenna, thereby eliminating losses caused by long cables and maximizing 5G performance. Integrated 4×4 MIMO 5G/LTE antennas ensure high throughput, reliable coverage, and precise localization. The solution is ideal for camera systems, industrial installations, hotspots, and transportation.

Robust housing with an IP67 certification and wind resistance of 190 km/h protects the device from water, dust, UV radiation, and extreme temperatures from -40 °C to +75 °C. With omnidirectional radiation, there is no need to aim the antenna precisely at the transmitter, which is especially appreciated in mobile applications. Power and data transfer through a single ethernet cable using passive PoE and RF connectors (4) SMA male significantly simplify installation on rooftops and masts.

LTE antenna

• 617 - 960, 1700 - 2700, 3300 - 4300 MHz
• 4x SMA male
• 4x4 MIMO
• 4.5 dBi

Compatibility

• TRB500

Package Contents

• Antenna box
• Mounting bracket
• Bracket and clamp
• Grommet
• Screws
