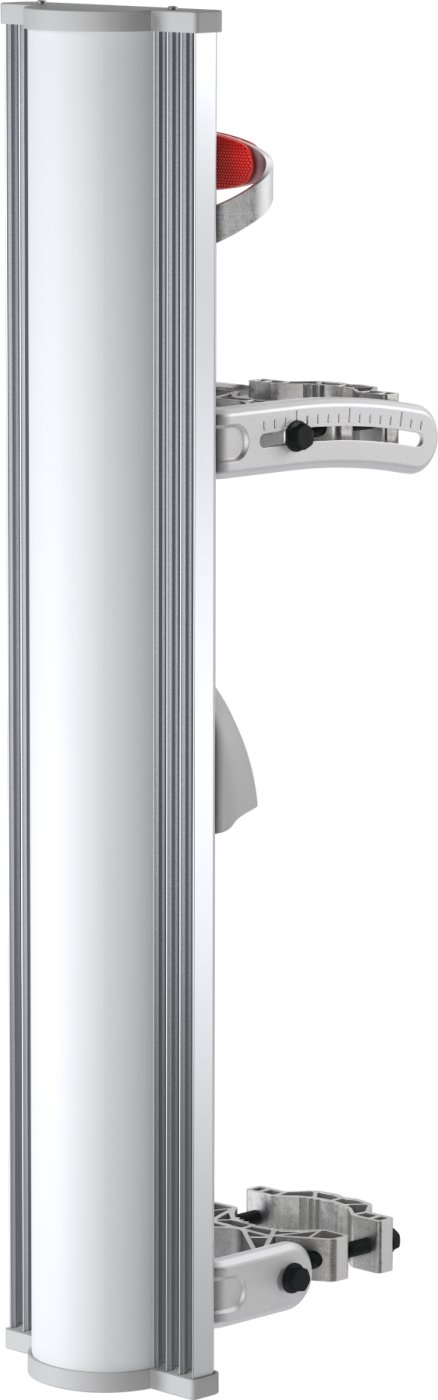

RF elements AS-2-14, Array sector antenna, 2.4 GHz, 14 dBi

The antenna for the 2.4 GHz band offers excellent performance for sector coverage and applications in dense clusters. With a 14 dBi gain, it ensures stable and highly efficient signal transmission across the entire bandwidth. Thanks to the integrated BackShield technology, it suppresses azimuthal side lobes and back radiation, improving co-location capability. The 112° beamwidth provides wide coverage, making it ideal for installations in densely populated areas and optimizing radio spectrum utilization.

Compatibility

The antenna supports a wide range of leading WISP industry transmission units that utilize RF connector mounting. A removable cover protects the RSMA connectors from adverse weather conditions, increasing connection reliability.

Supported Units

• RF elements StatioBox S
• RF elements StatioBox S Carrier Class
• RF elements RockShield
• Cambium Networks ePMP 1000 AP
• Cambium Networks ePMP 1000 CSM
• MikroTik BaseBox
• MikroTik NetBox
• MikroTik NetMetal
• Ubiquiti Rocket M2
• Ubiquiti Rocket 2AC Prism
• TP-Link Pharos WBS210
