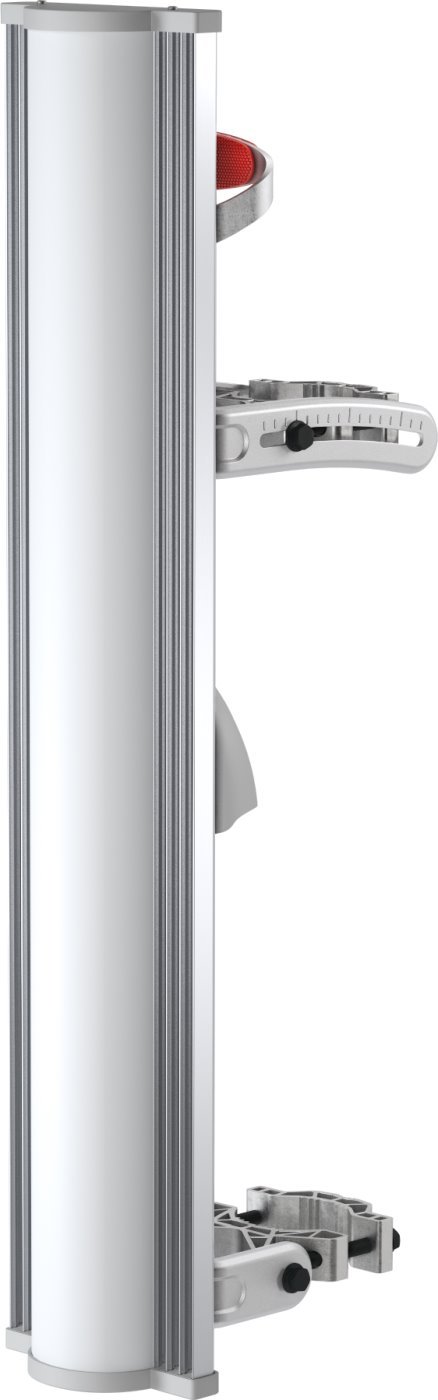

RF elements AS-5-20, Array sector antenna, 5 GHz, 20 dBi

The 5 GHz antenna offers excellent performance for sector coverage and applications in dense clusters. With a 20 dBi gain, it ensures stable and highly efficient signal transmission across the entire bandwidth. Thanks to integrated BackShield technology, it suppresses azimuthal side lobes and back radiation, improving co-location capabilities. The 100° beamwidth provides broad coverage, making it ideal for installations in densely populated areas and optimizing radio spectrum usage.

Compatibility

The antenna supports mounting a large number of leading WISP brands' radio units that use RF connectors. The removable cover protects the RSMA connectors from harsh weather, enhancing connection reliability.

Supported Units

• RF elements StatioBox S
• RF elements StatioBox S Carrier Class
• RF elements RockShield
• Cambium Networks ePMP 1000 AP
• Cambium Networks ePMP 1000 CSM
• Cambium Networks ePMP 2000 AP
• Cambium Networks ePMP 3000L AP
• MikroTik BaseBox
• MikroTik NetBox
• MikroTik NetMetal
• Ubiquiti Rocket M5
• Ubiquiti Rocket M5 Titanium
• Ubiquiti Rocket 5AC
• Ubiquiti Rocket 5AC Lite
• Ubiquiti Rocket 5AC Prism
• Ubiquiti Rocket 5AC Prism Gen2
• Ubiquiti airFiber 5X
• Ubiquiti airFiber 5X-HD
• Ubiquiti LTU Rocket
• Mimosa A5x
• TP-Link Pharos WBS510
