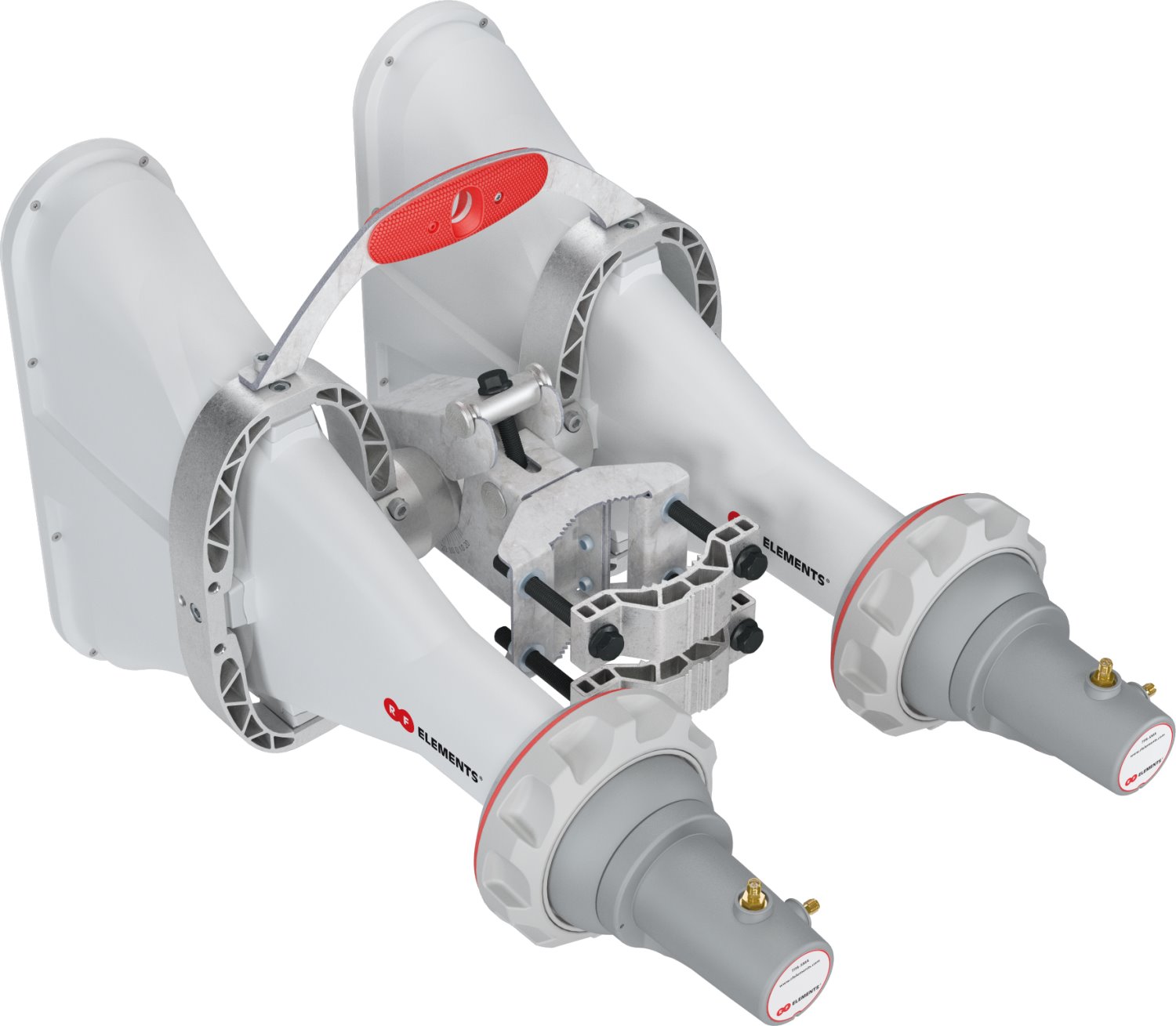

RF elements Asymmetrical sector Horn antenna with TwistPort, 4x4 MIMO, 5 GHz, 17dBi, 60°

Two independent asymmetric WideBand Horn sector antennas with TwistPort from RF elements operate in the 5 GHz frequency band, deliver a gain of 17 dBi and provide 4 chains (usable for two separate 2×2 MIMO radios or a single 4×4 MIMO radio). Thanks to an asymmetric beamwidth of 60°/25° (H/V), they offer excellent coverage without side lobes, ensuring superior interference immunity. Equipped with the patented TwistPort™ connector, they enable fast, loss-free attachment of compatible devices. The compact design and premium materials guarantee long service life and reliable performance even in harsh environments. The package includes two adapters with 2× RSMA female connectors for broader compatibility.

TwistPort Connector

The TwistPort connector from RF elements delivers fast, lossless coupling between the antenna and radio unit. Its revolutionary design eliminates RF connectors and cables, minimizing signal loss. This system is available for both sector and directional antennas, enabling flexible deployment in wireless networks. Installation is intuitive and requires no tools.

Cross-Platform Compatibility

A wide range of TwistPort adapters lets you connect the most popular radios with various RF connectors from manufacturers such as Ubiquiti, Mimosa, MikroTik, Cambium Networks and others directly to any antenna equipped with a TwistPort connector.

Innovative Mount

The 4×4 Asymmetrical Horn antennas feature an innovative mounting system with a separate bracket, simplifying installation and alignment. Just secure the bracket to the mast, slide the antenna in and lock it with the safety hook.
