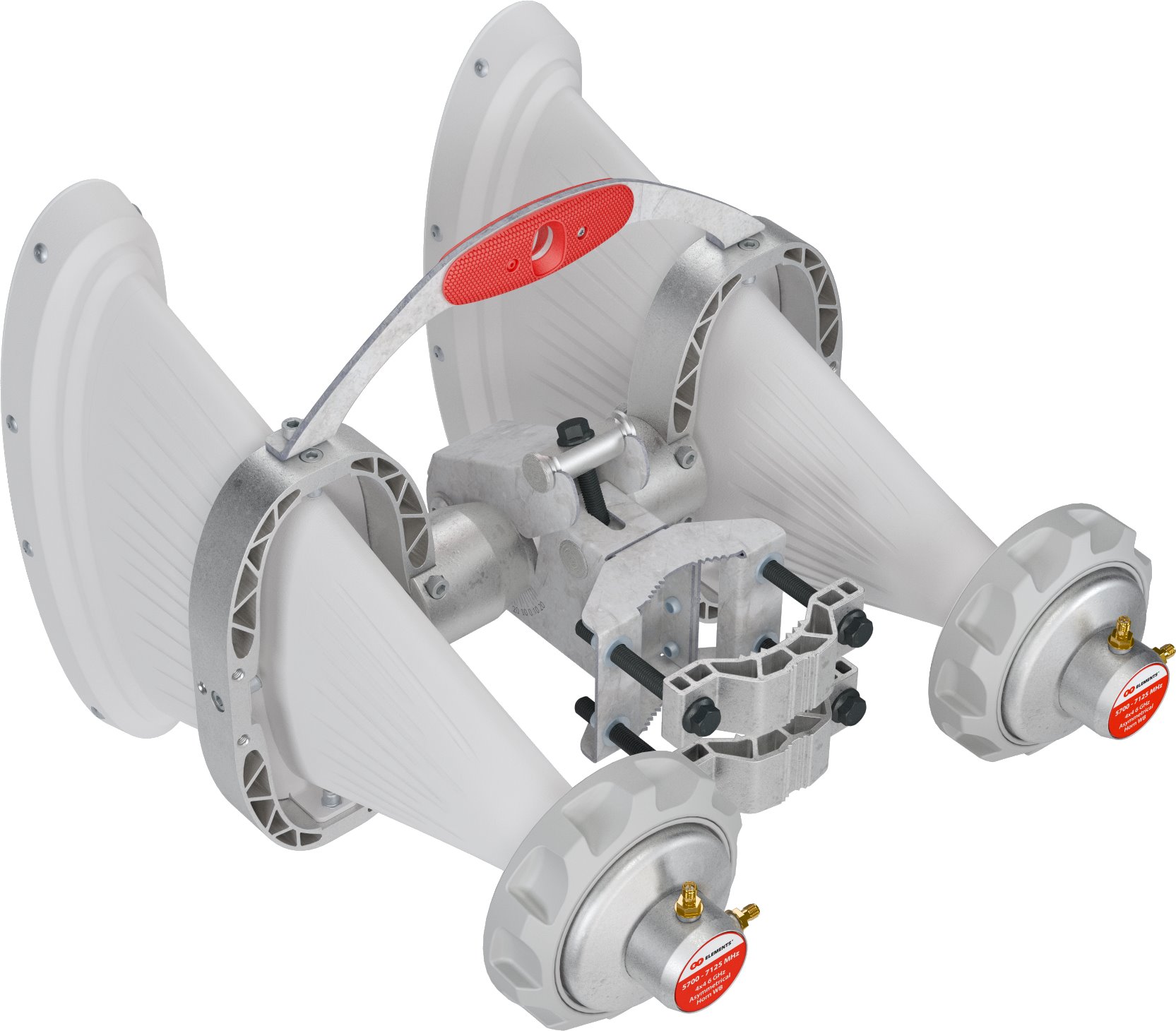

RF elements Asymmetrical sector Horn Wideband antenna with TwistPort, 4x4 MIMO, 5/6GHz, 17dBi, 60°

Two independent asymmetrical WideBand Horn sector antennas with TwistPort from RF elements operate in the 5 GHz and 6 GHz frequency band, providing a gain of 16 dBi and 4 chains (can be used for 2 independent radios 2x2 MIMO or one 4x4 MIMO). With a asymmetrical radiation angle of 63°/26° (H/V), it offers excellent coverage without side lobes, ensuring better resistance to interference. The antennas are equipped with a patented TwistPort™ connector that allows for easy and quick connection of compatible devices without signal loss. The compact design and quality materials ensure long-lasting durability and reliable performance even in challenging conditions. The package includes two adapters with 2x RSMA female connectors for wider compatibility.

TwistPort connector

The TwistPort connector from RF elements delivers fast and lossless connection between the antenna and the radio unit. Thanks to its revolutionary design, it eliminates RF connectors and cables, thereby minimizing signal loss. This system is available for sector and directional antennas, allowing flexible deployment in wireless networks. Installation is intuitive and requires no tools.

Compatibility across platforms

A wide range of TwistPort adapters allows for connecting the most popular radios with various RF connectors from different manufacturers, such as Ubiquiti, Mimosa, MikroTik, Cambium Networks, and others, directly to any antenna with a TwistPort connector.

Innovative mount

The 4x4 Asymmetrical Horn WB antennas feature an innovative mounting system with a separate bracket, making installation and adjustment easier. Simply attach the bracket to the pole, insert the antenna, and secure it with a safety hook. The antennas are 50% lighter than the 5 GHz version, and their compact design saves space and installation costs.
