Solar cable 6mm, 1m, red

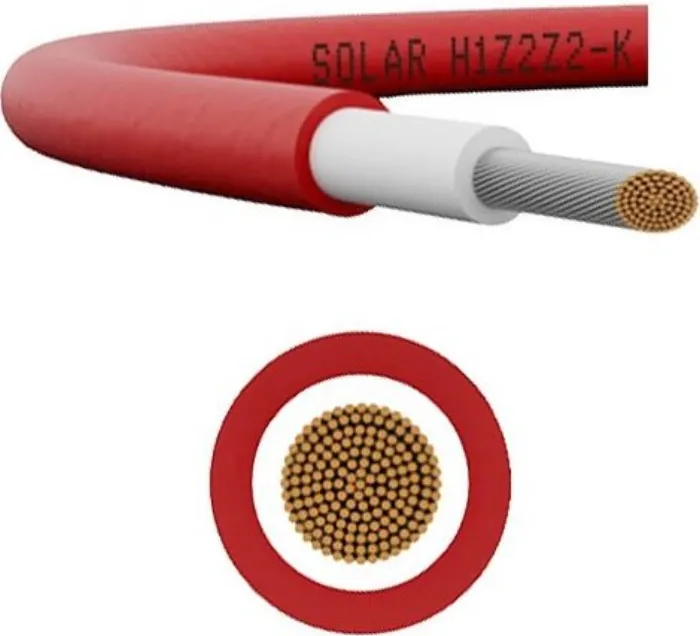

Solar single-core cable with double insulation, red color for the positive pole and cross-section 6 mm2 is intended for outdoor use on the DC side of photovoltaic systems to connect inverters and solar panels. The cable is unwound to the customer's size from a 500 m coil.

Important parameters

• Standard: ČSN EN 50618
• Nominal voltage: 1000 V DC
• Test voltage: 6500 V AC
• Cross section: 6 mm2
• Outer diameter of the conductor: 7.4 mm
• Sheath color: red
• Shell material: reinforced copolymer
• Temperature range: fixed storage -40°C to +90°C
• Resistant to: UV radiation and weathering according to ISO 4892-2
• Usage: outdoor, indoor
• Weight: 83.3 g/m
