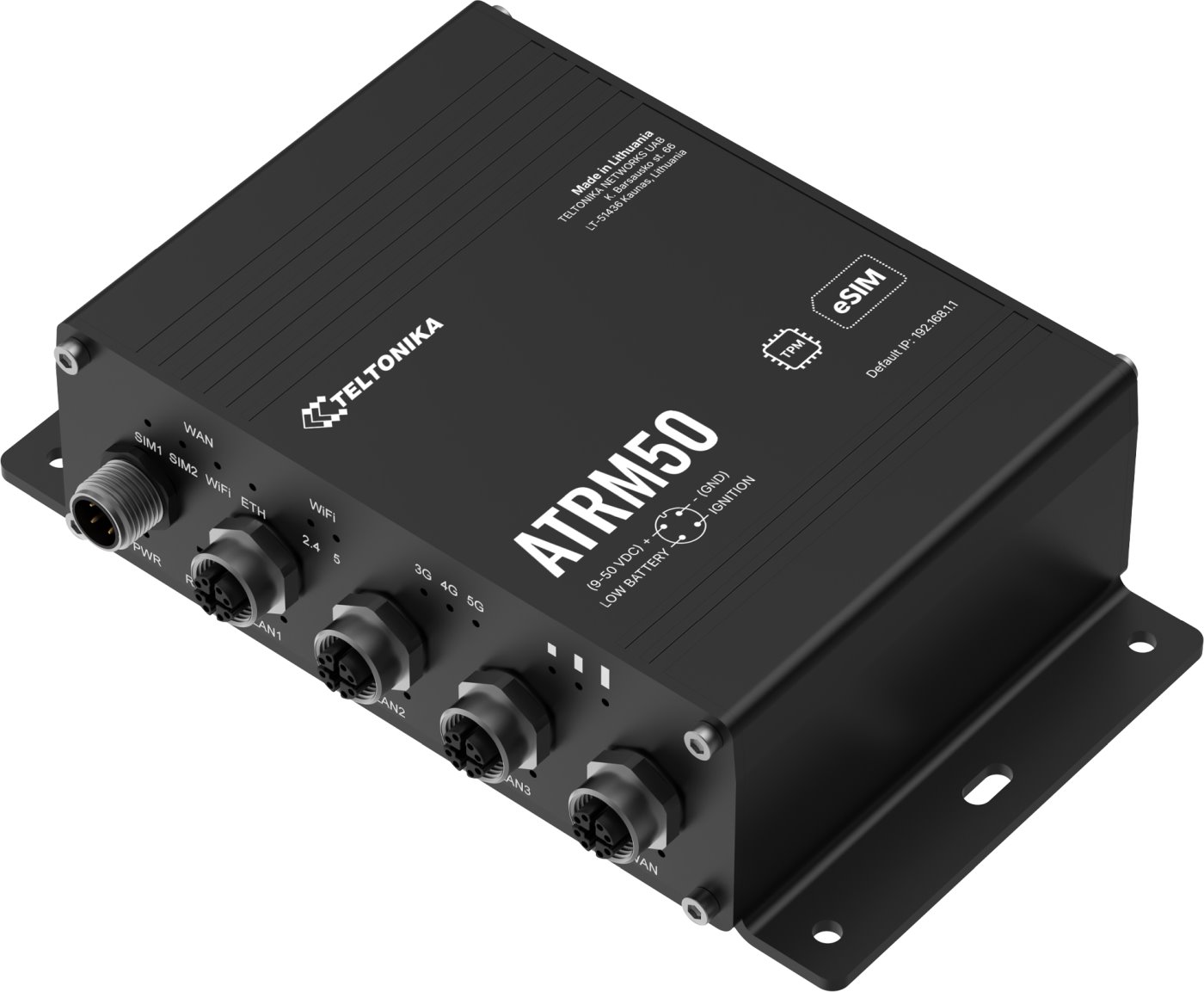

Teltonika ATRM50 Cellular 5G Wi-Fi Router for transportation, eSIM, M12 connectors

The robust 5G router designed for transport applications delivers speeds of up to 3.4 Gb/s and high reliability thanks to the support of DUAL SIM and eSIM, which allow for automatic switching between mobile networks without downtime. With four Gigabit M12 X-coded ports and an M12 A type power input, the device is ready for professional deployment in transport and industry. The EN 45545-2 and EN 50155 certifications confirm its resistance to vibrations, temperature fluctuations, and other extreme conditions.

Smart Operating System and Flexible Management

The router is equipped with RutOS based on Linux OpenWRT, supporting industrial protocols, VPNs, and advanced security. Thanks to the support of Teltonika RMS (Remote Management System), remote device management is easy and efficient. The SA and NSA architectures allow for flexible deployment in various 5G infrastructures, whether dependent on 4G or purely 5G. DIN rail mounting and power supply in the range of 9–50 V DC via M12 connector make this router an ideal choice for advanced network solutions in moving vehicles as well as fixed installations.

Key Features

• Mobile connectivity 5G/4G/LTE/3G - SA 2.4 Gbps / 900 Mbps or NSA 3.4 Gbps / 550 Mbps
• Dual-Band Wi-Fi: 802.11a/b/g/n/ac, speed 300 + 866 Mbps
• (4) SMA female (LTE) + (2) RSMA female (Wi-Fi) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (3) 10/100/1000 Mbps LAN + 10/100/1000 Mbps WAN
• (2) mini SIM slot (format 2FF), up to 7 eSIM profiles, automatic switching
• (1) digital input/output
• Power type: only via M12 connector (9 - 50 V DC)
• USB 2.0 - for connecting external HDD, modem, printer, USB serial adapter, etc.
• Remote management RMS and extensive VPN options

Package Contents

• 5G router ATRM50
• Hex key
