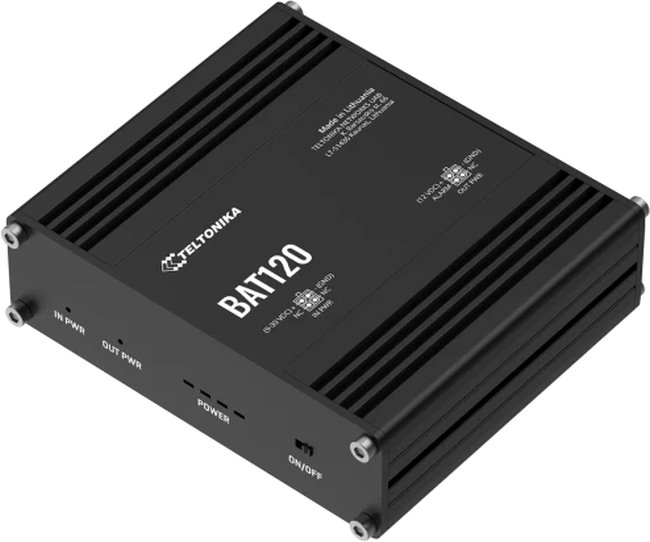

Teltonika BAT120 uninterruptable power supply

Teltonika BAT120 is a compact UPS backup power source designed to power devices during short-term power outages. With a built-in battery capacity of 2600 mAh (17 Wh) and operating voltage of 9 to 30 V DC, it provides reliable power with the same voltage as the input. In the event of a power failure, the output provides 12 V DC with up to 22 W (1.8 A). It features one input and one output 4-pin connector. The device is ideal for ensuring uninterrupted operation of Teltonika units during power outages.

Key Features

• Built-in 2600 mAh battery
• 1x input 4-pin, 1x output 4-pin, and 1x alarm output (12V / 2.5mA)
• Operating voltage: 9 to 30 V DC
• Battery mode voltage: 12 V DC
• Maximum output power: 22 W
• Compatibility: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100
