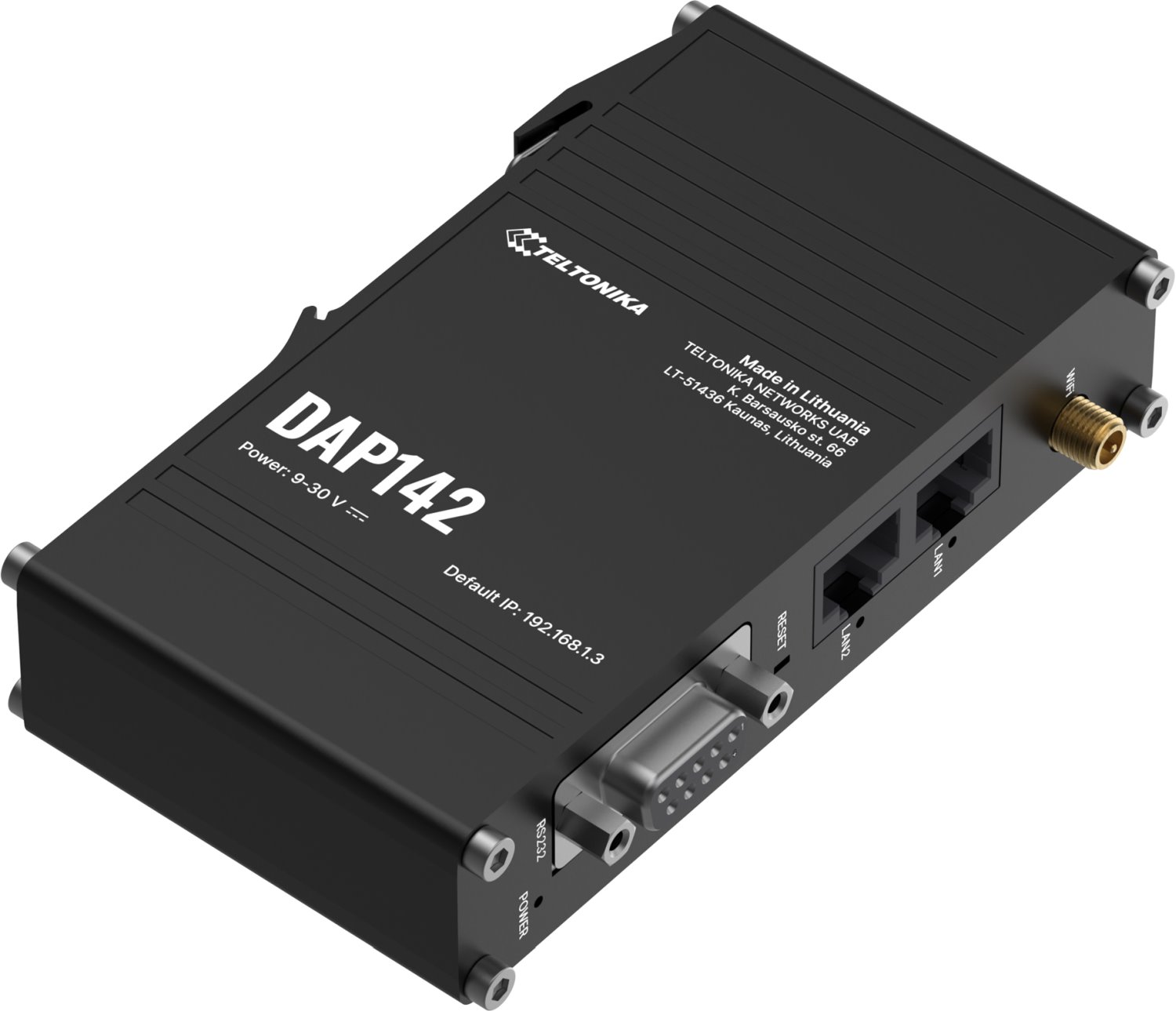

Teltonika DAP142 Industrial DIN rail access point, RS232

Designed specifically for industrial environments, this wireless access point ensures stable Wi-Fi 4 (802.11 b/g/n) connectivity with support for advanced technologies such as Wi-Fi mesh (802.11s), Fast Roaming (802.11r), and BSS Transition Management (802.11v), which significantly enhance device mobility within the network. Thanks to automatic WAN failover, the network is always available – in case of a main connection outage, it automatically switches to a backup line. Management is provided by the RMS platform, which allows for remote monitoring, updates, and VPN services.

Durable Construction and Flexible Mounting

Robust aluminum housing with IP30 rating withstands demanding conditions in industrial operations. DIN rail mounting allows for quick and secure attachment to control panels or distribution boards. The device supports power over passive PoE, simplifying installation even in areas without direct access to power and additionally features an RS232 port. Thanks to the integrated QR code for connecting to Wi-Fi, deployment is a matter of minutes even for less experienced users.

High Performance, Wide Compatibility

Support for up to 50 simultaneously connected users and compatibility with communication protocols such as MQTT, Modbus, or DNP3 makes this access point an ideal solution for modern industrial IoT applications. The Hotspot feature expands access options even in operations where fast and controlled sharing of the connection is needed. Remote management, security standards, and a wide range of features make this device a reliable cornerstone of any resilient network.

Key Features

• Support for Wi-Fi 4 (802.11 b/g/n) with Mesh, Fast Roaming, and BSS Transition features
• Automatic WAN failover to ensure continuous connectivity
• Power over passive PoE for easy installation without the need for additional cabling
• Durable aluminum chassis with DIN rail mounting and IP30 protection
• Remote management via RMS, including VPN and support for MQTT, Modbus, DNP3 protocols
• Support for up to 50 simultaneously connected users
• Ports: 2× RJ-45 10/100 Mbps, 1× DB9 (RS-232)
• Hotspot feature for controlled sharing of the connection

Package Contents

• Industrial Access point
• 3-pin power connector
