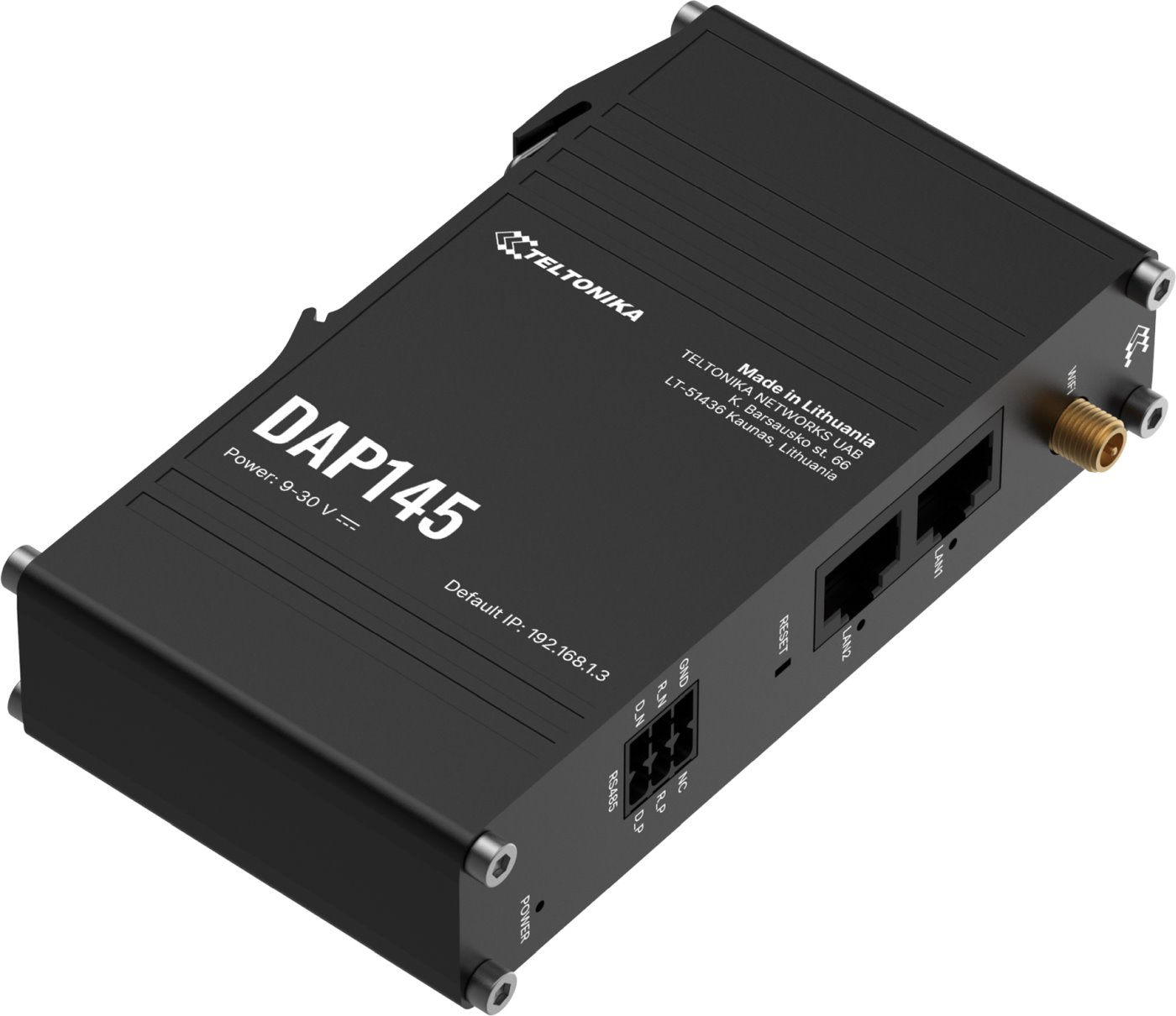

Teltonika DAP145 Industrial DIN rail access point, RS485

Designed for demanding industrial applications in energy, manufacturing, and automation, this access point enables easy connectivity of serial devices with modern IP networks. Thanks to the native RS-485 interface, industrial technologies can be directly connected without the need for complex conversion. Support for Wi-Fi standards 802.11b/g/n and flexible modes including Access Point, Station, Mesh, and Fast Roaming ensures stable communication even in large operations. The built-in RutOS operating system offers advanced network features and secure data transmission to corporate systems or the cloud.

Reliability, management, and industrial durability

The compact aluminum design with integrated DIN rail mounting is optimized for cabinets and industrial installations. The device operates in extreme conditions due to the operating temperature range of -40 to +75 °C and power supply of 9–30V DC. Support for industrial protocols such as Modbus and OPC UA facilitates integration into existing systems, while remote management via RMS with FOTA updates significantly simplifies maintenance and monitoring.

Key features

• Wi-Fi standards IEEE 802.11b/g/n with Access Point, Station, Mesh, and Fast Roaming modes
• Native RS-485 interface for direct connection of industrial devices
• Support for industrial protocols Modbus, BacNET, OPC UA, DNP3, DLMS/COSEM
• RutOS operating system with advanced network features and VPN
• Power supply of 9–30V DC via industrial 3-pin connector
• Integrated DIN rail mounting and durable aluminum casing
