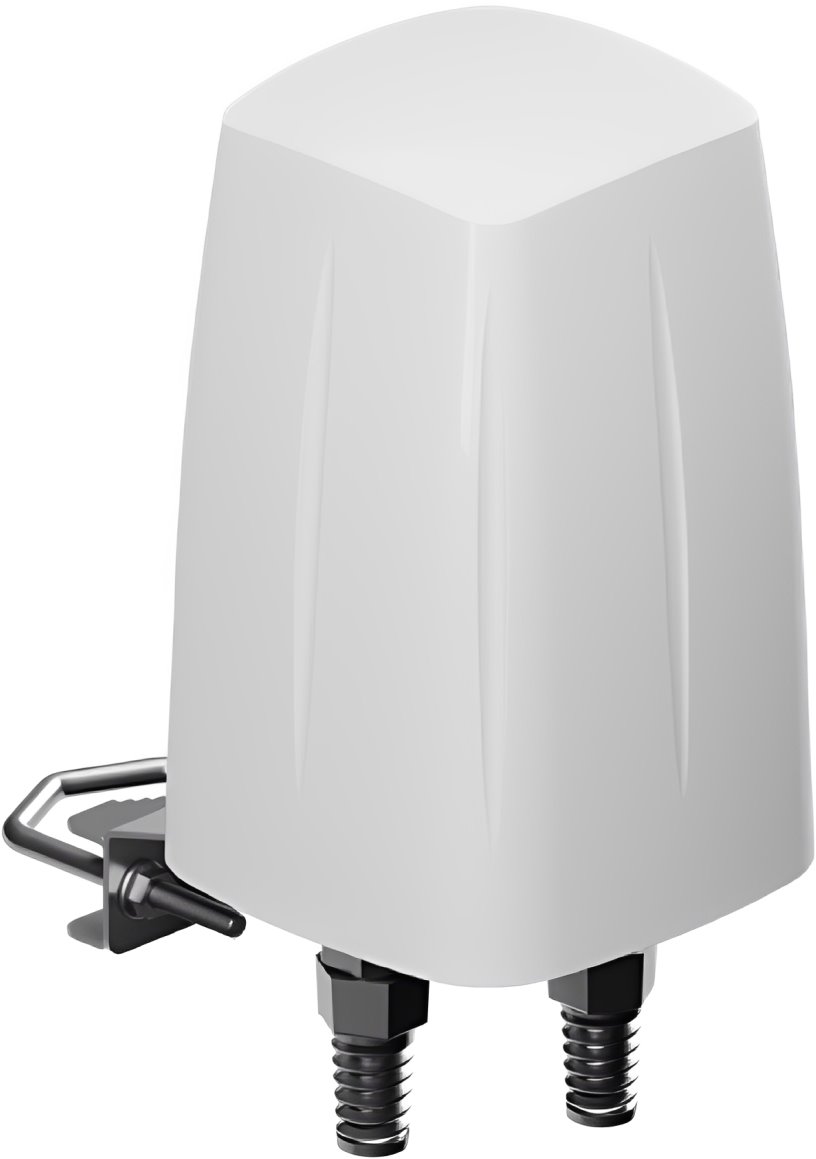

Teltonika PR1DCA70, Outdoor LTE and 5G/Wi-Fi/GPS antenna

The outdoor antenna box from Teltonika with integrated omnidirectional LTE/5G, Wi-Fi, and GPS antennas offers an ideal solution for outdoor routers due to very short cables, which significantly reduces attenuation at high 5G frequencies. It contains four LTE/5G antennas with a gain of 4.5 dBi, two Wi-Fi antennas with a gain of 7.5 dBi, and a GPS antenna. IP67 rating ensures weather resistance, allowing installation on a pole or wall. Inside the box, there is a storage space for the router and at the bottom, a gland for the incoming Ethernet cable for data and PoE, ensuring reliable connectivity even in demanding outdoor conditions. An additional gland has been added for the LAN cable + power connector.

Wi-Fi antenna

• 2400 - 2500 and 4700 - 6000 MHz
• 2x RSMA male
• 2x2 MIMO
• 7.5 dBi

LTE/5G antenna

• 617 - 960, 1700 - 2700 and 3300 - 4700, 5200 - 6000 MHz
• 4x SMA male
• 4x4 MIMO
• 4.5 dBi

GPS antenna

• 1560 - 1610 MHz
• 1x SMA male
• 28 dBi

Contents of the package

• Antenna box
• Mounting bracket
• Bracket and clamp
• Gland
• Screws
